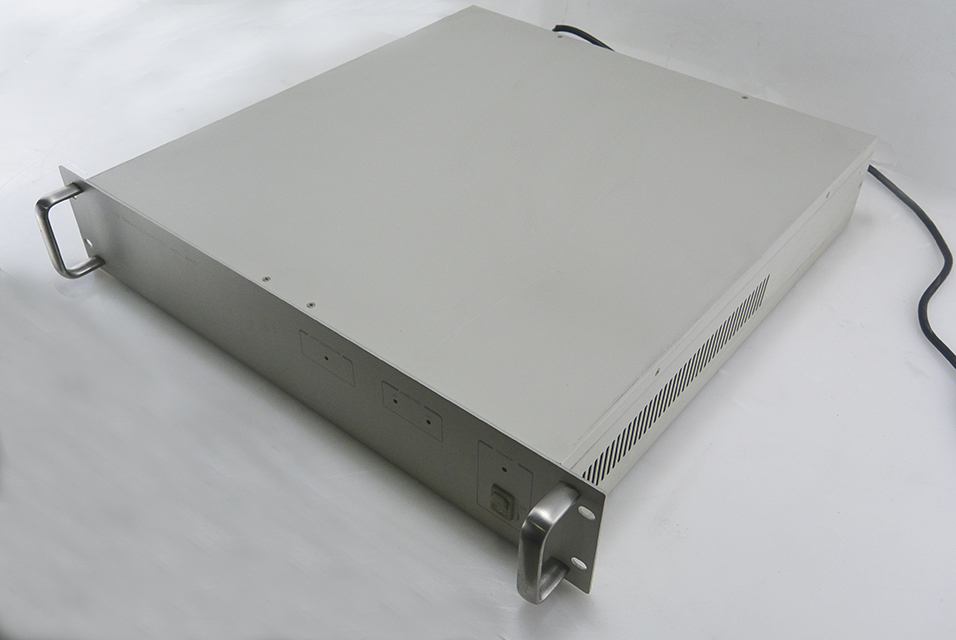

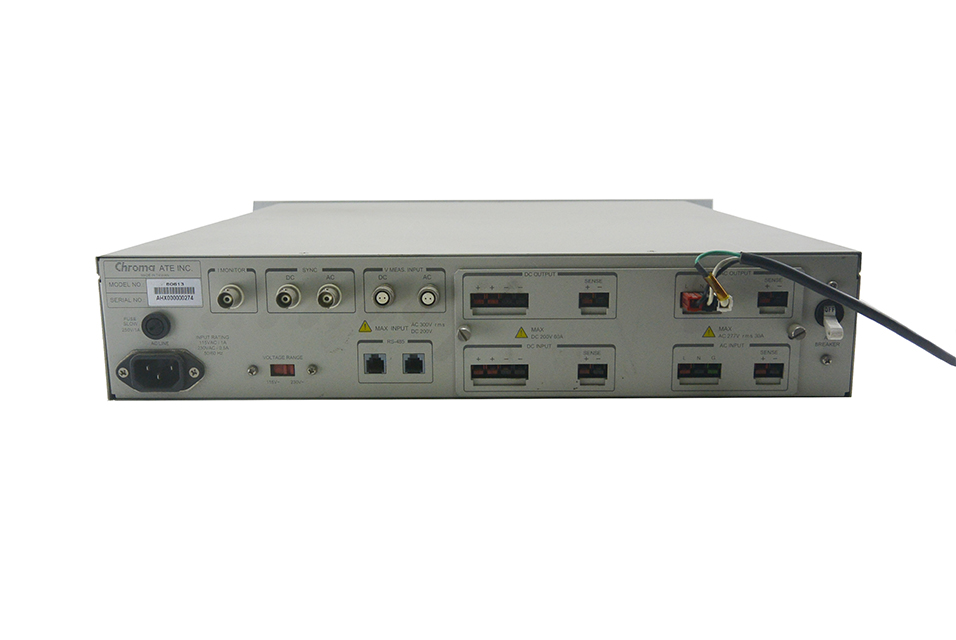

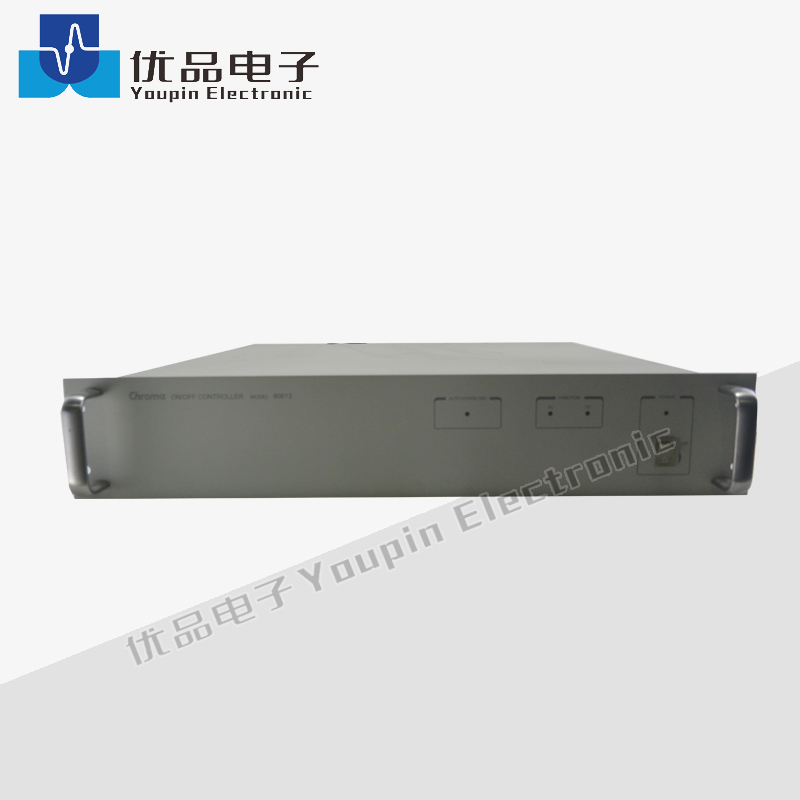

Chroma’s Model 80613 ON/OFF Controller is a specially designed module to enhance the system testing capability of Chroma’s 8000 Series
Power Supply Auto Test System.
On/Off control of input AC source at any phase angle.
Input dropout duration up to 1000msec.
Inrush current measurement up to a maximum of 200A.
Input AC & DC remote sense feedback for input AC or DC source.
Output AC & DC sense, sensing UUT Input voltage.
Peak and rms current protection.
Phase Control to a maximum of 65.535msec to control AC On/Off phase.
Measurement for Vac/Vdc/Ipk+/Ipk-/Irms/Idc.
AC or DC On/Off synchronous signal output, for ease of monitoring.
AC or DC current signal output, for ease of monitoring.
