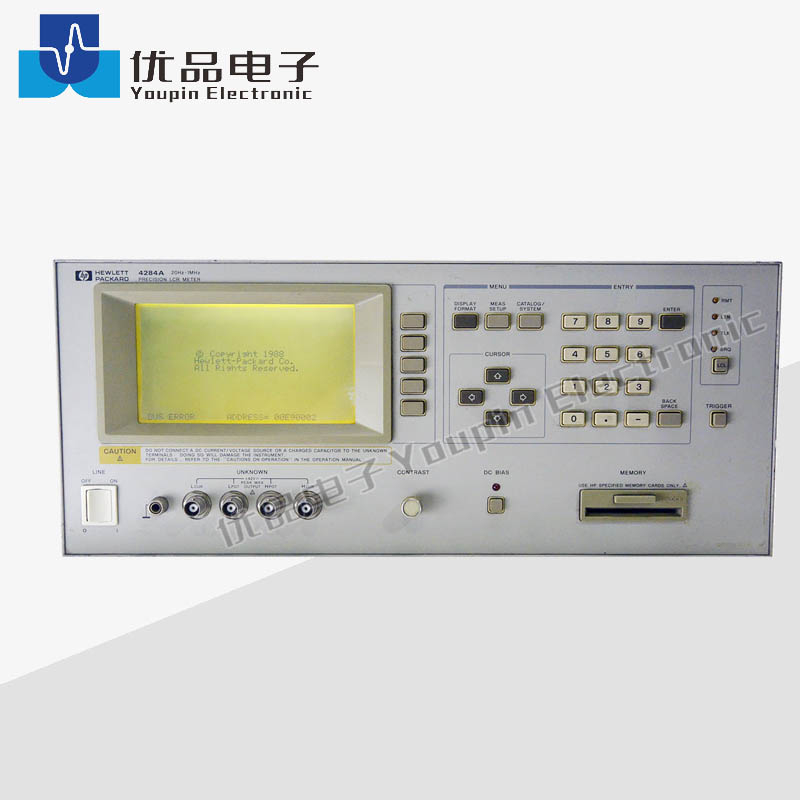

Keysight(Agilent) 4284A Precision LCR Meter

  • Keysight(Agilent)

  • 4284A


•Wide Range DC Current Biased Inductance Measurement
•0.05% basic accuracy
•40 A DC support with the Keysight 42841A Bias Current Source

The 4284A precision LCR meter is a cost-effective solution for component and material measurement. The wide 20 Hz to 1 MHz test frequency range and superior test-signal performance allow the 4284A to test components to the most commonly-used test standards, such as IEC/MIL standards, and under conditions that simulate the intended application. Whether in research and development, production, quality assurance, or incoming inspection, the 4284A will meet all of your LCR meter test and measurement requirements.

16034E       Test Fixture (SMD Components)
16034G       SMD Test Fixture
16034H       SMD Array Type LCR Test Fixture
16044A        SMD LCR Kelvin Contact Test Fixture
16047A        Test Fixture (Axial and Radial)
16047E        Test Fixture, 40 Hz to 110 MHz
16048A        Test Lead, BNC Connector to BNC Connector Board
16048D        2m BNC Test Cable
16048E        Test Leads
16065A         200 Vdc External Voltage Bias Fixture
16089A         Large Kelvin Clip Lead
16089B         Medium Kelvin Clip Lead
16089C         Kelvin IC Clip Lead
16089D         Alligator Clip Lead (4 Clips)
16092A          Spring Clip Fixture
16192A          Parallel Electrode SMD Test Fixture
16194A          High Temperature Component Test Fixture
16196A          Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196B          Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196C          Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196D         Parallel Electrode SMD Test Fixture, DC to 3 GHz
16197A          Bottom Electrode SMD Test Fixture
16200B          External DC Bias Adapter
16334A          Test Fixture (Tweezers Contacts)
16380A          Standard Air Capacitor Set (1pF to 1000pF)
16380C         Capacitance Standard Set - 0.01uF to 10uF
16451B          Dielectric Test Fixture
16452A          Liquid Test Fixture
1CM023A      Rackmount Flange Kit 177.0mm H (4U) - Two Flange Brackets
1CN012A      Handle Kit 177.0mm H (4U) - Two Front Handles, System II Plus
1CP013A       Rackmount Flange and Handle Kit 177.0mm H (4U) - Two Brackets and Front Handles
42030A          Four Terminal Pair Standard Resistor Set
42090A          Open Termination (4-Terminal Pair)
42091A          Short Termination (4-Terminal Pair)
82357B          USB/GPIB Interface High-Speed USB 2.0
