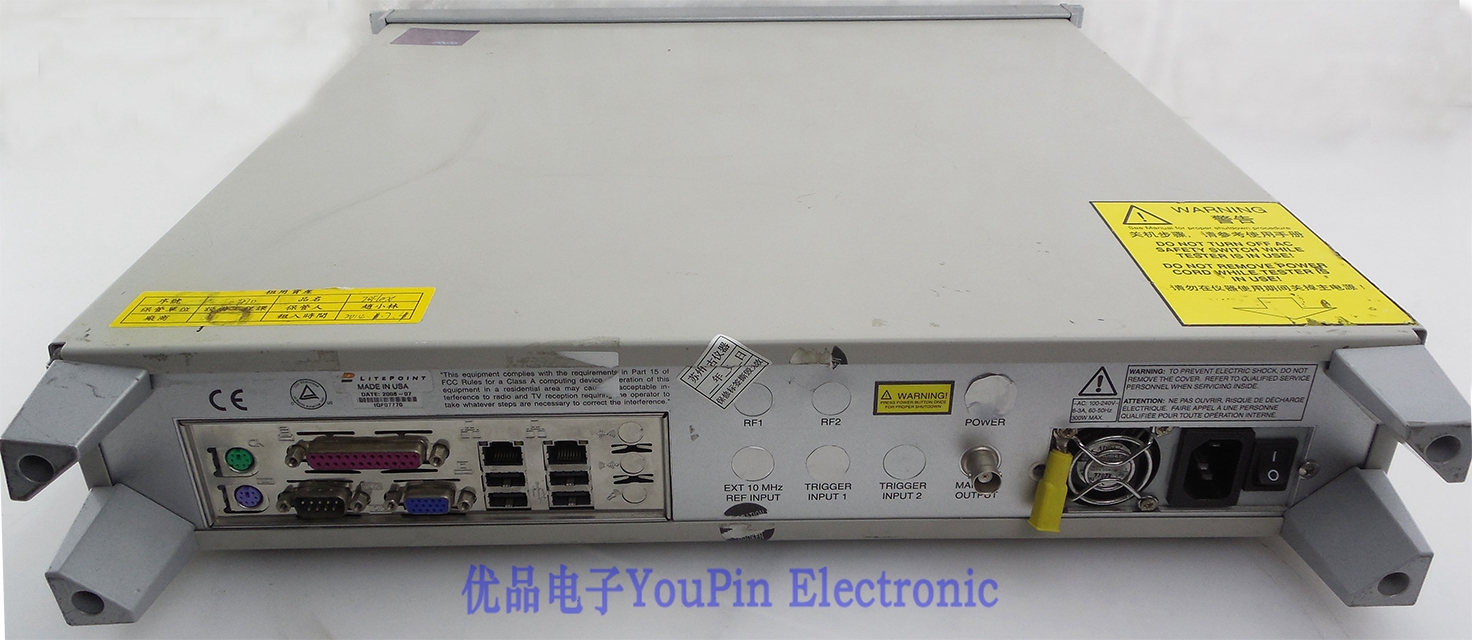

Litepoint IQview R&D test solution for Wi-Fi and Bluetooth testing

  • Litepoint
  • IQview
Menge:



Frequency Range:
•2.4 to 2.5 GHz, 4.9 to 6.0 GHz

Input Power Range:
•+30 dBm to -148 dBm/Hz

Output Power Range:
•+10 dBm to -95 dBm

Supported Technologies:
•Wi-Fi, 802.11a
•Wi-Fi, 802.11b
•Wi-Fi, 802.11g
•Wi-Fi, 802.11j
•Wi-Fi, 802.11n
•Wi-Fi, 802.11p
•Bluetooth 1.x
•Bluetooth 2.x
•Bluetooth 3.0
•Bluetooth Low Energy (BLE) 4.0, 4.1 (optional)




The LitePoint  IQview  simplifies Wi-Fi and Bluetooth  device development with powerful tools to both source and measure Wi-Fi and Bluetooth signals and analysis capabilities providing insight into device behavior. The IQview offers seamless compatibility with the IQflex  manufacturing solution enabling test software developed on the IQview to run on the IQflex platform widely deployed in manufacturing environments.

Included Support For:
•802.11a/b/g/j/n/p SISO
•Bluetooth 1.x, 2.x, 3.0

Optional Support For:
•Bluetooth Low-Energy (4.0, 4.1)

Models for Every Budget:
•Single Band (2.4 GHz) and Dual Band (2.4/5 GHz) models to fit desired application needs

Tools to Speed Design
•IQsignal™ analysis tools
    Key Wi-Fi and Bluetooth measurements built to deliver rapid product characterization
•Differential analog baseband I/O
   Speeds early IC (Integrated Circuit) development

Rapid R&D to Factory Transition
•Seamless transition to volume manufacturing on the IQflex as test programs developed on the IQview can run on the IQflex
