Agilent 85093C RF Electronic Calibration Module (ECal) , 300 kHz to 9 GHz, 3.5 mm, 2-port
Key Features & Specifications ●300 kHz to 9 GHz frequency range ●Fast full two-port calibration with a single connection ●Simple non-insertable device calibration ●NIST traceable accurate calibrations ●Reduced connector wear ●USB interface for direct control with PNA and ENA series of network analyzers ●Reliable solid-state switching ●Mixed connector options available (3.5 mm, Type-N 50 ohm, and 7-16) Anritsu MA2481D Universal Sensor, 10 MHz to 6 GHz
The MA2480A series are true RMS sensors with a dynamic range of 80 dB. These power sensors can be used for average power measurements on CW, multi-tone and modulated RF waveforms such as 3G, 4G, and OFDM. The sensor architecture consists of three pairs of diodes, each one configured to work in its square law region over the dynamic range of the sensor. Therefore, it measures true RMS power regardless of the type or bandwidth of the modulation of the input signal. Option 1 provides TDMA measurement capability, calibrating one of the diode pairs for linearity over a wide dynamic range, thus making it a truly universal sensor. True-RMS detection enables accurate average power measurements of any signal type 80 dB dynamic range Option 1 enables fast and accurate (1.8 % linearity) CW average power measurements. Wide frequency coverage from 10 MHz to 18 GHz (sensor dependent) Calibration factors stored in EEPROM Rohde & Schwarz SMIQ03B Signal Generator RF Characteristics ●frequency range from 300 kHz to 3.3 GHz ●High (up to 16 dBm) and precise output level (<0.5 dB) ●Fast setting time for frequency (<3 ms) and level (<2.5 ms) (Without switching the mechanical attenuators) ●Frequency hopping (500 µs) ●High spectral purity (typ. -130 dBc (1 Hz) at 1 GHz and 20 kHz carrier offset) ●RF, AF and level sweep (user-programmable)

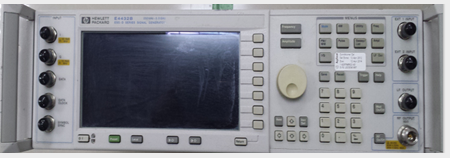

Agilent E4432B ESG-D Series Digital RF Signal Generator , 3 GHz
Key Features & Specifications ●250 kHz to 3 GHz frequency range ●RF modulation bandwidth up to 35 MHz ●Optional dual arbitrary waveform generator and/or real-time I/Q baseband generator ●40 MHz sample rate and 14-bit I/Q resolution ●1 Msample (4 MB) memory for waveform playback and 1 Msample (4 MB) memory for waveform storage ●Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM), AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power) ●E443xB ESG Customer Installable Upgrades

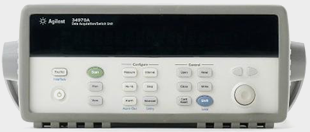

Agilent 34970A Data Acquisition / Data Logger Switch Unit
Features ●3-slot mainframe with built-in GPIB and RS232 interfaces ●6 1/2-digit (22-bit) internal DMM, scanning up to 250 channels per second ●8 switch and control plug-in modules to choose from ●Built-in signal conditioning measures thermocouples, RTDs and thermistors, ac/dc volts and current; resistance; frequency and period ●50k readings of non-volatile memory holds data when power is removed ●Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs ●Free BenchLink data logger software to create tests without programming
R&S FSP7 Spectrum Analyzer FSP
FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service. ●Frequency range 20Hz to 7GHz ●Resolution bandwidth 1 Hz to 10 MHz ●Displayed average noise level -155 dBm (1 Hz) ●Phase-noise typ. -113 dBc/Hz @ 10 kHz offset, CF 500 MHz ●Phase-noise typ - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
