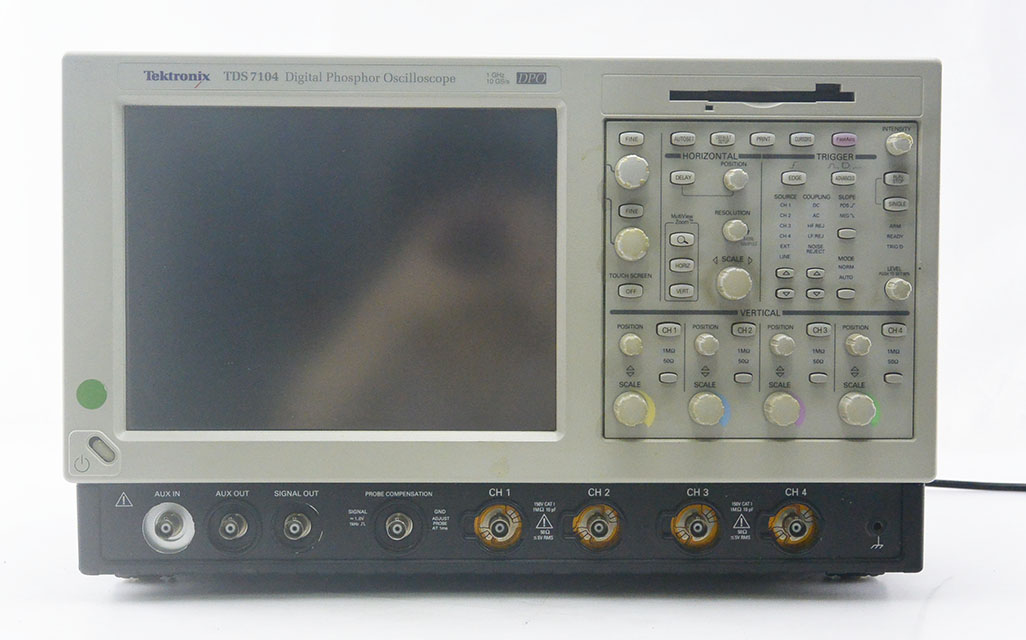

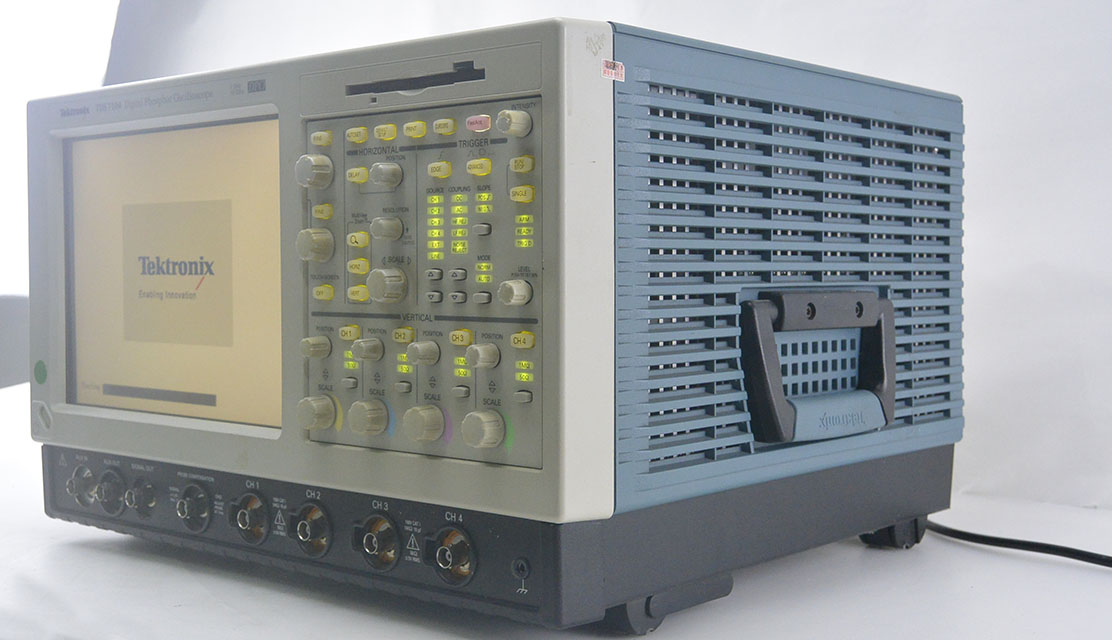

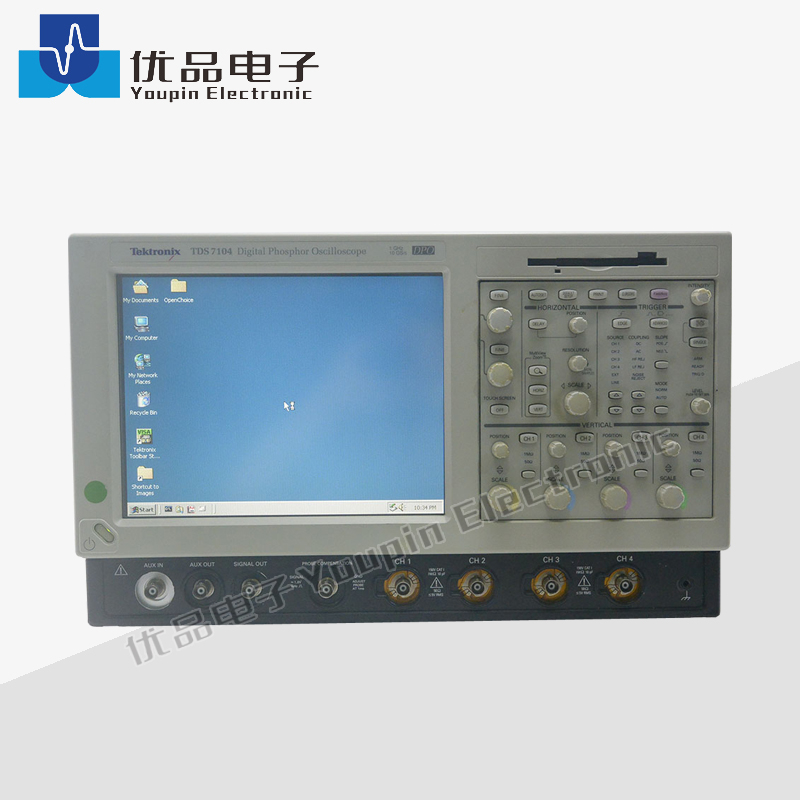

Tektronix TDS7104 Digital Oscilloscope

  • Tektronix
  • TDS7104
Menge:



•1 GHz bandwidth
•10 GS/s Sample Rate on 1 or 2 Channels
•2.5 GS/s Sample rate on 3 or 4 Channels
•4 channels.
•Up to 400k record length
•Jitter Measurements to 1.5 psRMS
•Analysis and Connectivity Functionality
•Graphical User Interface
•Control Via Classic Direct Controls, Touch-sensitive, Color Display or Mouse
•Open Windows Environment
•Built-in Networking




Up to 1 GHzTrue Analog Bandwidth and Down to 43 ps Risetime (20% - 80%) > 400,000 wfms/s Waveform Capture Rate, powered by exclusive DPX™ acquisition technology 10 GS/s Real-time Sample Rate Exceptional Delta-time Accuracy for High-confidence in Critical Timing Measurements Powerful Triggering Features for Fast Detection of Relevant Faults Communications Mask Testing Up to 4.25 Gb/s Rates Clock Recovery from Serial Data Streams up to 3.125 Gb/s Up to 64 MB Record Length with MultiView Zoom™ for Quick Navigation of Long Records TekConnect® Interface for High Fidelity Connection Classic Direct Controls, Touch-sensitive Display, or Mouse Navigation OpenChoice™ with Windows 2000 Delivers Built-in Networking and Analysis XGA 1024x768 display
