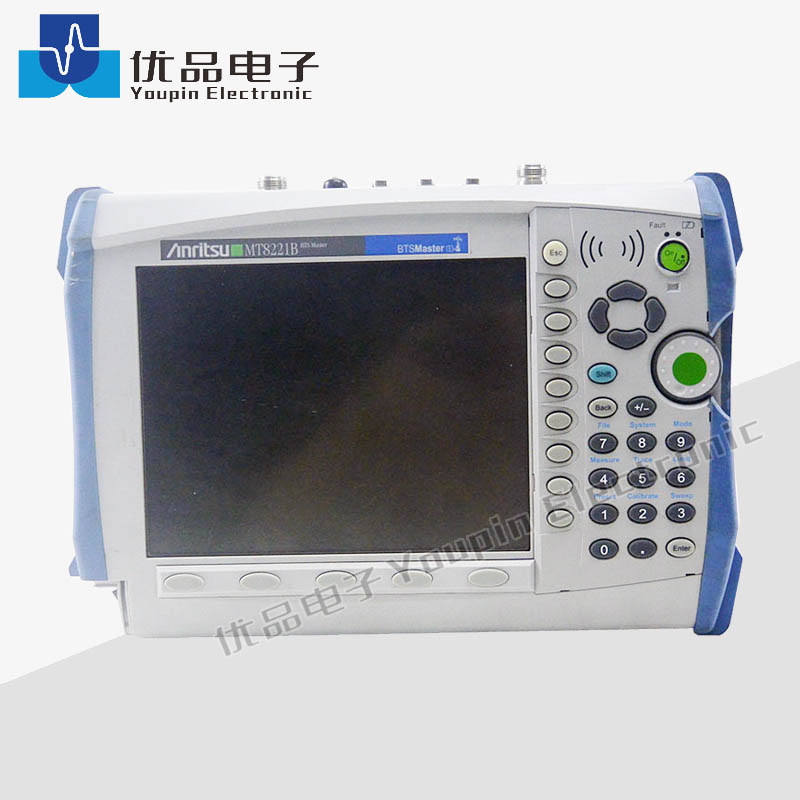

Anritsu MT8221B High Performance Base Station Analyzer

Features

·  Cable and Antenna Analyzer Highlights
·  Measurements: Return Loss, VSWR, Cable Loss, Distance-to-Fault (DTF), Phase, Gain
·  2-port Gain Measurement Uncertainty: < 0.45 dB
·  2-port Dynamic Range: > 80 dB
·  RF Immunity: +17 dBm on-channel, +10 dBm on-frequency
·  Calibration: OSL and FlexCa
·  Bias Tee: 32 V internal

Spectrum and Interference Analyzer Highlights

·  Measurements: Occupied Bandwidth, Channel Power, ACPR, Carrier-to-Interference (C/I)
·  Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
·  Dynamic Range: > 95 dB in 1 Hz RBW
·  DANL: -163 dBm in 1 Hz RBW
·  Phase Noise: -100 dBc/Hz @ 10 kHz offset at 1 GHz
·  Frequency Accuracy: < ±25 ppb with GPS On

Standard features in the BTS Master MT8221B include:

· 2-Port Cable & Antenna Analyzer - 400 MHz to 4 GHz
· Spectrum Analyzer - 150 KHz to 7.1 GHz
· Power Meter - 10 MHz to 7.1 GHz



The BTS Master MT8221B is Anritsu's high performance base station analyzer. From the ground up it has been designed to support both upcoming 4G standards and installed 2G/3G networks. The MT8221B s platform provides a 20 MHz demodulation capability to support future 4G technologies such as LTE and WiMAX. It also features a 30 MHz Zero-Span IF Output for external demodulation of virtually any other wideband signal. In addition, a Vector Signal Generator option is available for comprehensive receiver testing capability with the flexibility to generate two modulated signals plus noise.

The BTS Master MT8221B Base Station Analyzer is ideal for senior cell site technicians and RF engineers to accurately and quickly test and verify the installation and the commissioning of base stations and cell sites for optimal wireless network performance and for the on-going maintenance and troubleshooting to keep your wireless network infrastructure fine-tuned.
