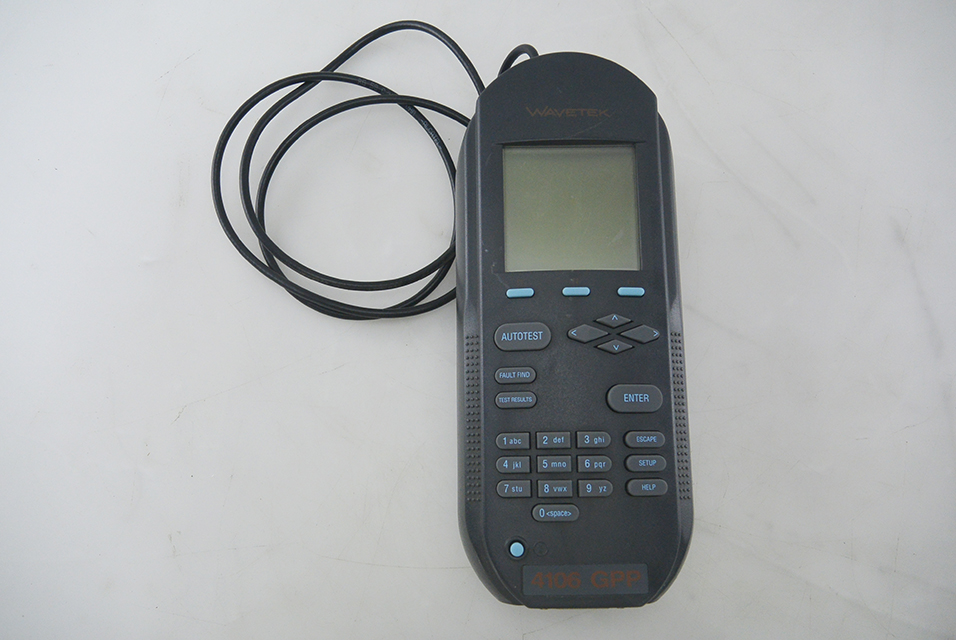

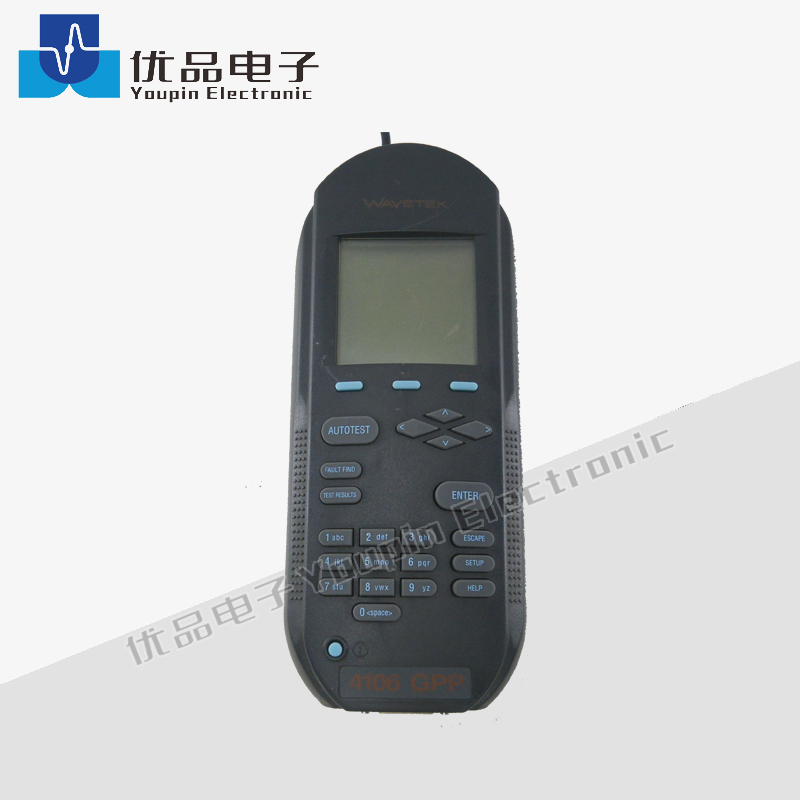

Wavetek 4106GPP GSM Mobile Fault Finder

Generator output level
900 MHz: 44 to 110 dBm (+/-1.5 dBm) 4100
900 MHz: 44 to 110 dBm (+/-1 dBm) 4100S
1800/1900 MHz: 50 to 110 dBm (+/-1.5 dBm) 4100
1800/1900 MHz: 50 to 110 dBm (+/-1 dBm) 4100S

Generator frequency error
1 ppm

RF power measurements(burst)
+39 to 20 dBm (+/-1.5 dBm) usable up to +45 dBm

Frequency error measurement
within 5 kHz offset from carrier
900 MHz: +/-25 Hz, 1800/1900 MHz: +/-50 Hz
Phase error measurement
within measurement range 1.5 to 20 degrees rms
900MHz: +/-1.5 degrees rms, 1800/1900 MHz: +/-2.5 degrees rms

Interfaces
RS-232-C interface (serial) for exchanging data with PCs
Centronics interface (parallel) for commercially available printers
TNC jack for RF connection
Power pack connection




All Wavetek 4100 series testers can communicate with a PC via a serial interface (RS-232-C) and with all printers using the
standard Centronics port. Power is provided from an external AC power pack.
