Keysight(Agilent)

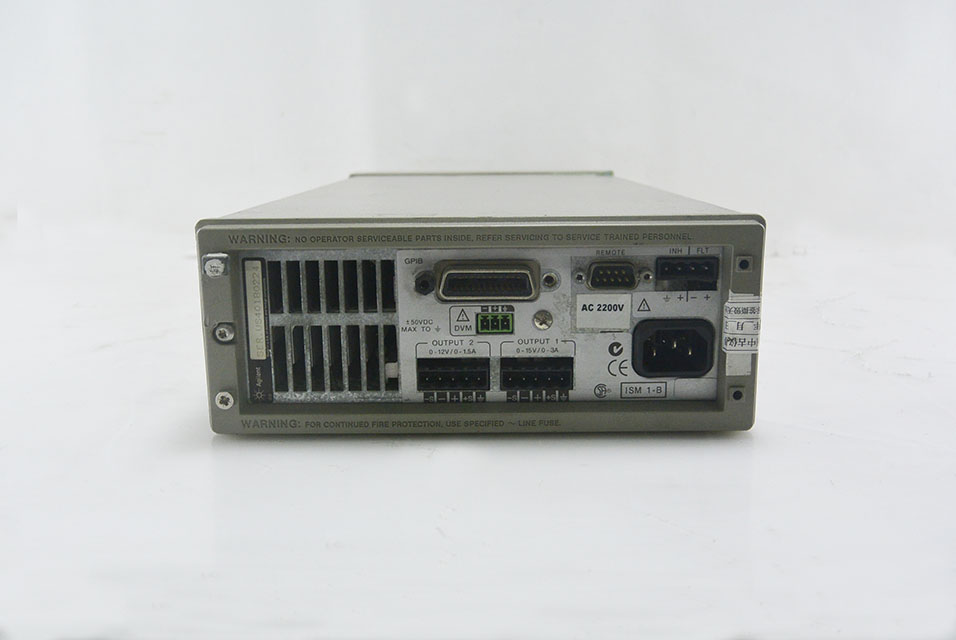

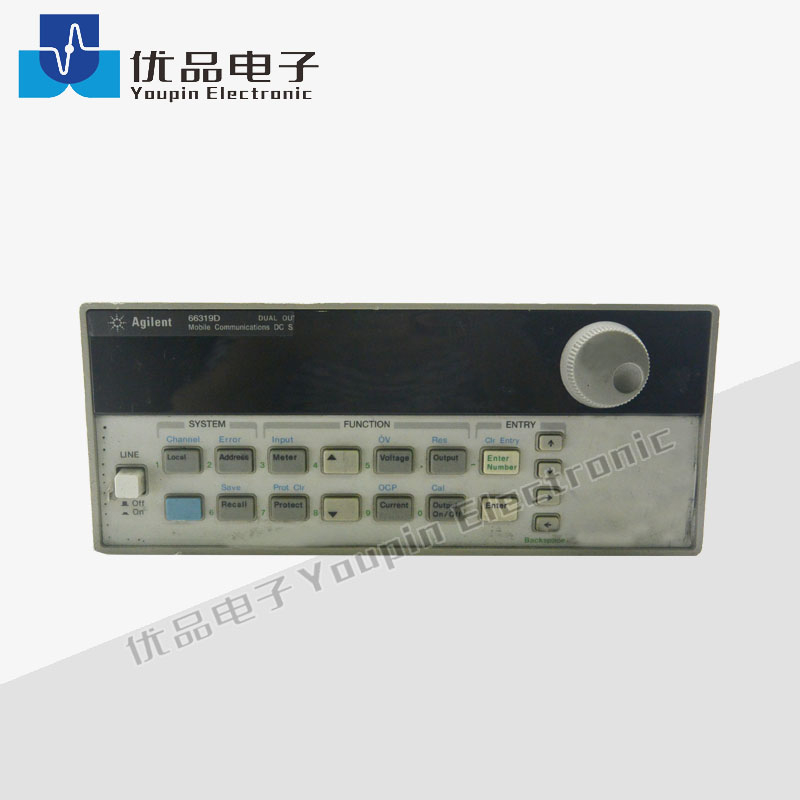

66319D
| Menge: | |
|---|---|
Output ratings
•Voltage: 0 to 15 V
•Current: 0 to 3 A
•Peak Current for up to 7 ms: 5 A
Programming accuracy at 25°C ±5°C (% of setting plus fixed)
•Voltage: 0.05% + 10 mV
•+Current: 0.05% + 1.33 mA
DC readback accuracy
•Voltage: 0.03% + 5 mV
•Current (-3 A to + 5 A): 0.2% + 0.5 mA
•Current (-1 A to + 1 A): 0.1% + 0.2mA
•Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
Transient response
•40 mV drop,<20 µs transient response time
The Keysight Mobile Communications DC Source 663xx series offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring. Built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes and a Keysight-developed feature that enables cellular telephone manufacturers to detect permanently and intermittently open-sense wire connections.
The Keysight 66319D dual output mobile communications dc source provides two outputs for testing both the main battery power and the battery charger circuitry, allowing customers to test phones and chargers with the same equipment. This feature helps save on rack space (2 outputs in a ½ rack box) and eliminates the need for two separate power supplies. The 66319D dc source provides all of the capabilities of the 66319B with the addition of a built-in digital voltmeter.
For R&D engineers, you can characterize current out of the battery and make tradeoffs in design that impact the current drain and battery life (by providing data logging – up to 1000 hours, CCDF statistical analysis, and waveform capture) , when the 66319D is used with the Keysight 14565B Software.
66319D-007 2 Extra 5-pin output connectors
66319D-0L1 English Printed Users Guide (full documentation on CD-ROM)
66319D-100 87-106VAC operation, 50/60Hz
66319D-120 104-127VAC operation, 50/60Hz
66319D-1CM Rackmount Kit with blank filler panel
66319D-220 191-233VAC operation, 50/60Hz
66319D-230 209-254VAC operation, 50/60Hz
66319D-521 Add solid state output disconnect relays
66319D-8ZJ Removes feet for use in a racked system
66319D-A6J ANSI Z540-1-1994 Calibration
66319D-AXS Rackmount Kit for side by side mounting
66319D-UK6 Commercial calibration certificate with test data
14565B Device Characterization Software with Test Automation
14565U Device Characterization Software Upgrade
1CM021A Rackmount Flange Kit 88.1mm H (2U) - 1.75 in Hole Space, Side-by-Side Mounting
