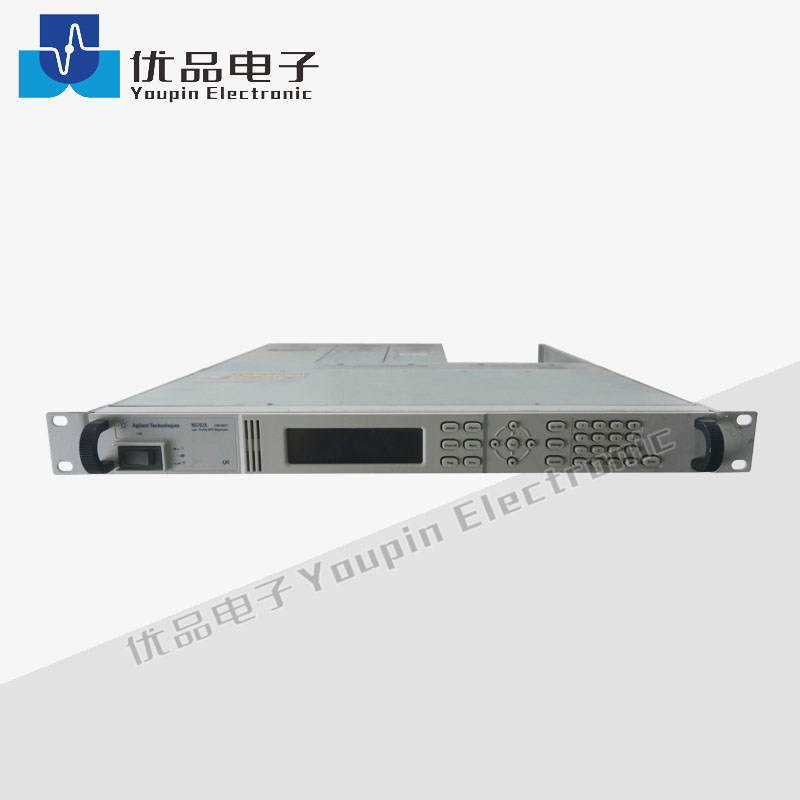

Keysight(Agilent) N6702A Low-Profile Modular Power System Mainframe

Maximum Total Output Power (= Sum of Total Module Output Power)
•1200 W when operating from 200 - 240 VAC input
•600 W when operating from 100 - 120 VAC input

AC Input
•Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
•Input Range: 86 VAC - 264 VAC
•Power Consumption: 3000 VA typical
•Fuse Internal fuse (not customer accessible)

Protection Response Characteristics
•INH input: 5 µs from receipt of inhibit to start of shutdown
•Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)

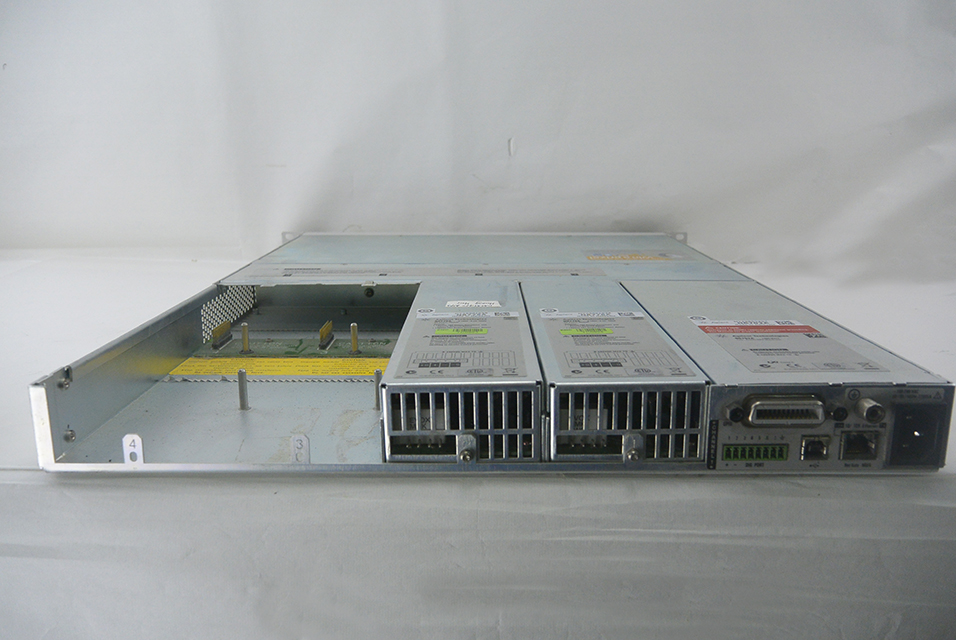

he Keysight N6702A is a 1200 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series
DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces
standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic
to high precision, and in power from 20 - 300 W.




T N6702A-0L1       English Printed Manual Set (full documentation on CD-ROM)
N6702A-PLG         Continental European power cord - only for EU DISTR W MULT PWR CORD standards
BV0003A                BenchVue Power Supply Pro Software License
N6700B-FLR         Filler Panel Kit for Low-Profile Modular Power System Mainframes - 3 panels
N6708A                  Filler Panel Kit for Low-Profile Modular Power System Mainframes - 3 panels
N6709A                  Low-Profile MPS Mainframe Rack Mount Kit
