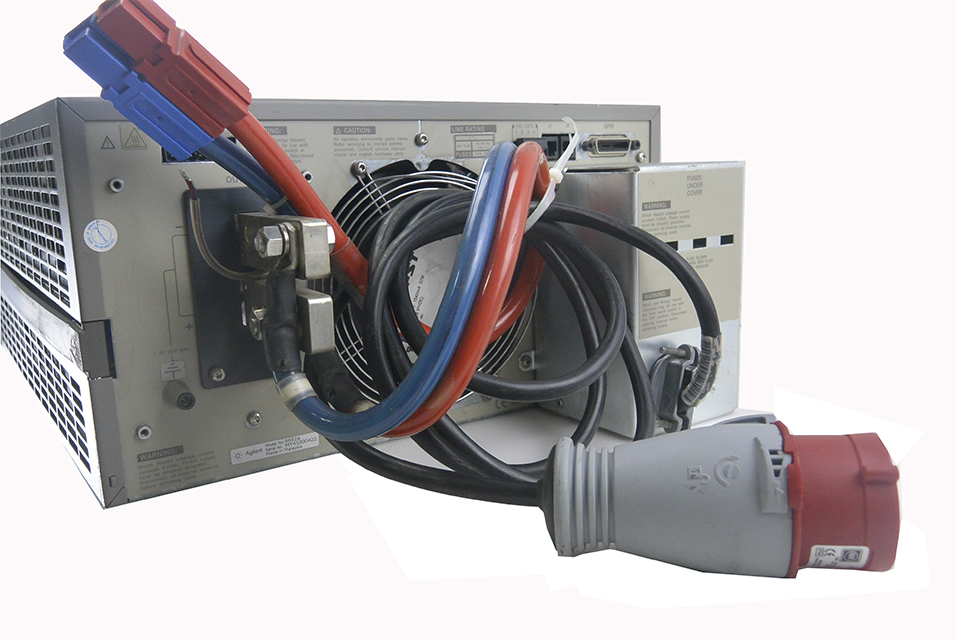

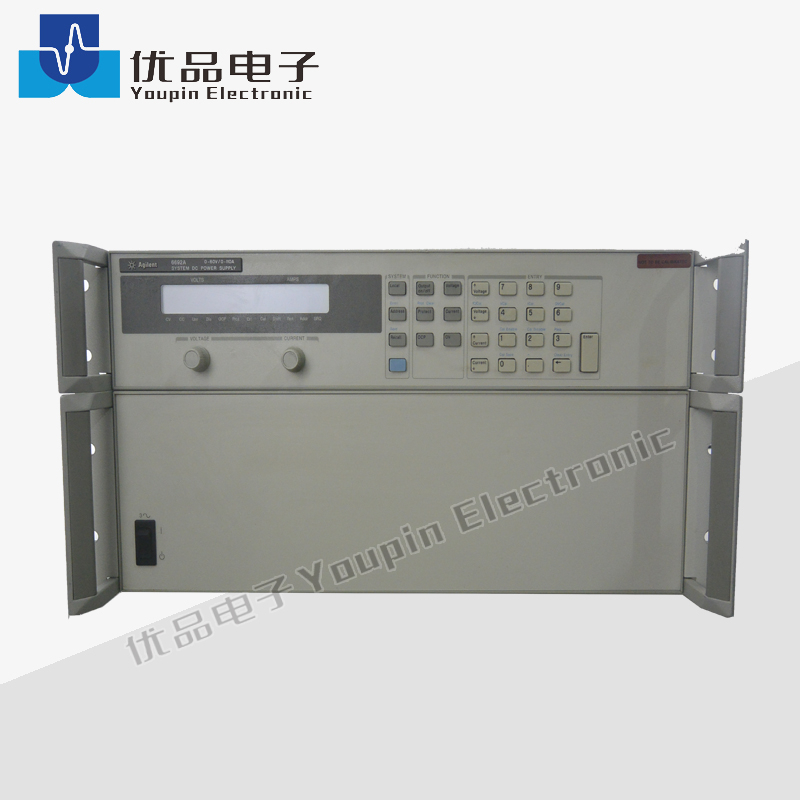

Keysight(Agilent)
6692A
| Menge: | |
|---|---|
Output Ratings
•Voltage: 0 to 60 V
•Output current : 0 to 110 A
Programming Accuracy (at 25 ±5°C)
•Voltage: 0.04% + 60 mV
•Current: 0. 1% + 65 mA
Ripple & Noise (20 Hz to 20 MHz)
•Voltage: rms: 2.5 mV
•Voltage: Peak-to-peak: 25 Mv
Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 6600 W, GPIB 6690A-6692A provide low output ripple and noise; analog control of output voltage and current; fan-speed control to minimize acoustic noise; as well as built-in measurements and advanced programmable features.
The Keysight 6600W, GPIB, single output 6692A is a dependable solution that delivers high power with low noise and is highly accurate, offering excellent reliability and performance for demanding, high-power applications in manufacturing test and long-term burn-in.
6692A-0L1 English Printed Users and Programming Guide (full documentation on CD-ROM)
6692A-208 180-235V,3 phase AC,50/60Hz INPUT (use with power cord opt 861)
6692A-400 360-440V,3 phase AC,50/60Hz INPUT (use with power cord opt 862)
6692A-602 Bus Bar Spacer Kit, 4 spacers and hardware, no cover
6692A-A6J ANSI Z540-1-1994 Calibration
6692A-UK6 Commercial calibration certificate with test data
1CM028A Rackmount Flange Kit 88.1mm H (3U) and 132.6mm H (2U) - 4 Brackets (5U Total)
1CP014A Double Rackmount Flange and Handle Kit 88.1mm H (2U) and 132.6mm H (3U)
