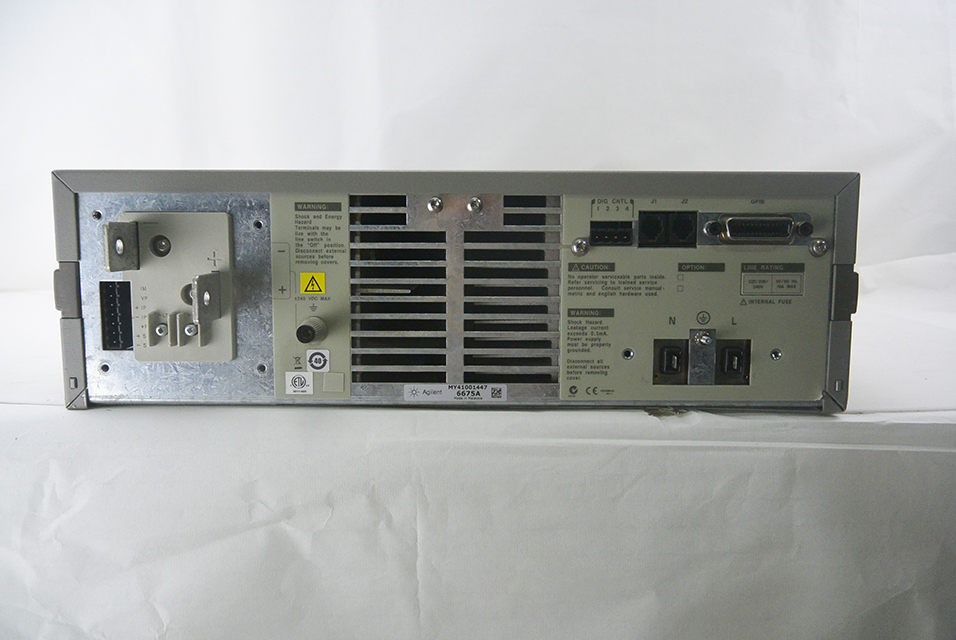

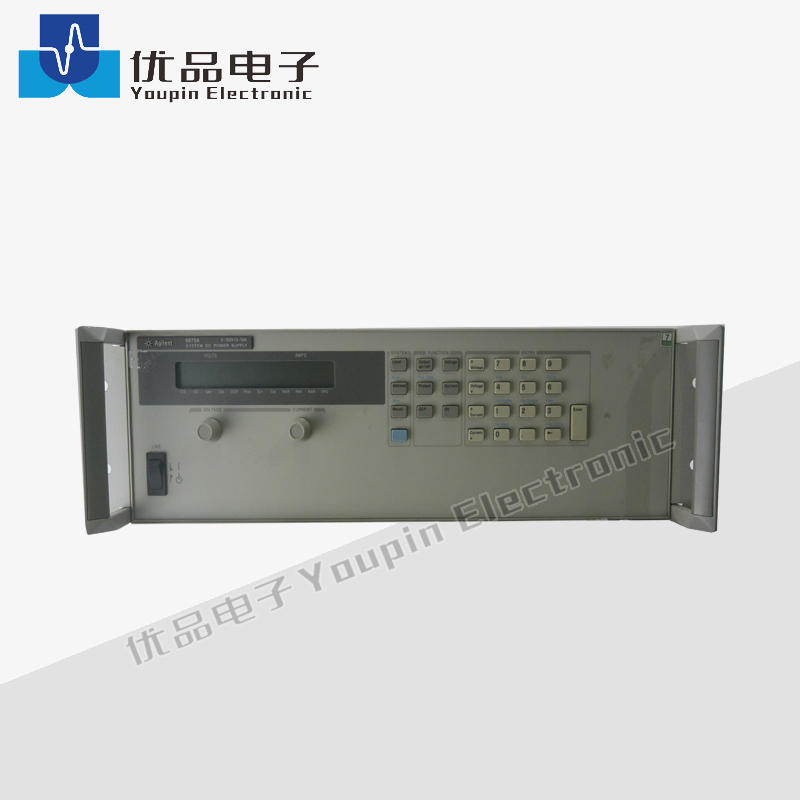

Keysight(Agilent) 6675A DC Power Supply

Output Ratings
•Output voltage: 0 to 120 V
•Output current (40°C): 0 to 18 A

Programming Accuracy at 25°C ±5°C
•Voltage 0.04% + 120 mV
•Current 0.1% + 12 mA

Ripple & Noise from 20 Hz to 20 MHz
•Voltage rms: 1.9 mV
•Peak-to-Peak: 16 mV
•Current rms: 12 mA




Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 2000 W GPIB 6671A-6675A provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.

The Keysight 2160W, GPIB, single output 6675A is a highly efficient low-noise supply that maximize test throughput and is designed to offer excellent reliability, low ripple and noise, and extremely accurate built-in measurements of voltage and current.




6675A-0L1        English Printed Users and Programming Guide (full documentation on CD-ROM)
6675A-200        DC power supply 174-220VAC operation, 50/60Hz - Output voltage derated below 185VAC
6675A-230        DC power supply 191-250VAC operation, 50/60Hz
6675A-831        Power cord, No Plug, 12AWG, 3-wire, 8.2ft, p/n 8120-5488
6675A-832        Power cord, Europe, No Plug, 4mm, 3-wire, 2.5m length
6675A-A6J        ANSI Z540-1-1994 Calibration
6675A-J04        Voltage increased to 160 V, current reduced to 13 A; 2080 Watts
6675A-J06        Voltage increased to 135 V, current reduced to 16 A; 2160 Watts
6675A-J07        Voltage increased to 200V, current reduced to 11A; 2200 Watts
6675A-J08        Current increased to 22A, voltage decreased to 100 V; 2200Watts
6675A-J09        Current increased to 20A, voltage decreased to 110 V; 2200Watts
6675A-J11        V (out) increases to 150V, 15A
6675A-S50        Non-latching remote inhibit
6675A-UK6       Commercial calibration certificate with test data
1CM003A          Rackmount Flange Kit 132.6mm H (3U) - Two Flange Brackets
1CP002A          Rackmount Flange and Handle Kit 132.6mm H (3U) - Two Brackets and Front Handles
