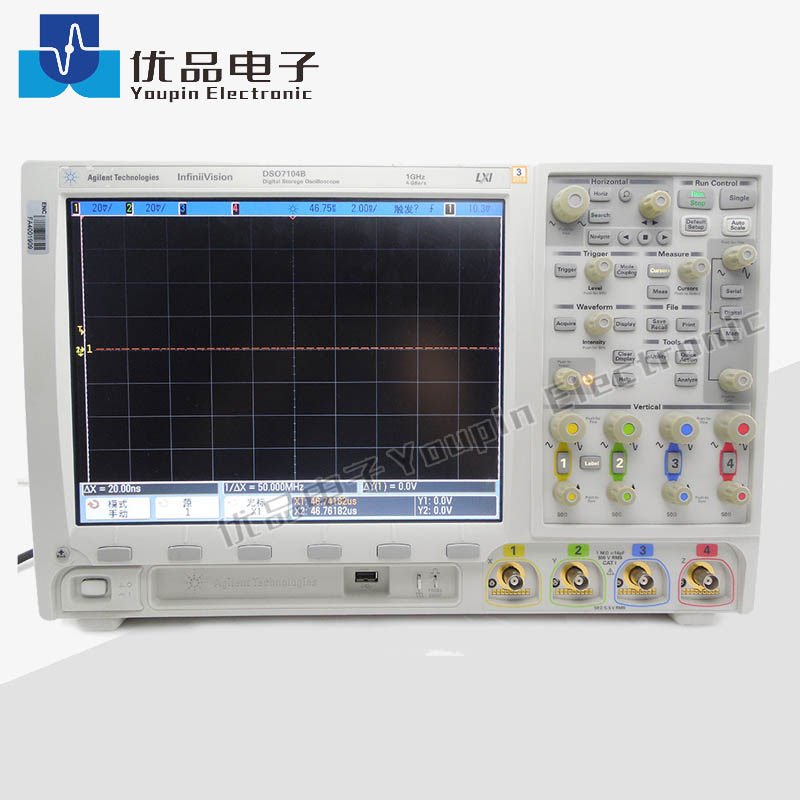

Keysight(Agilent) DSO7104B Oscilloscope

  • Keysight(Agilent)

  • DSO7104B


Lab scope performance
•1 GHz bandwidth; 4 GSa/s sample rate
•4 analog channels
•Standard 8 Mpts MegaZoom III deep memory
•Automatic Search and Navigate

Engineered for the best signal visibility
•12.1” XGA display with 256 levels of intensity shows subtle signal detail
•Industry’s-fastest uncompromised update rate of up to 100,000 waveforms/sec displays infrequent events

Wide range of application packages
•Segmented memory
•Mask Testing
•Serial decode including: I2C, SPI, CAN, LIN, FlexRay, RS-232/UART, I2S , and MIL-STD 1553
•MATLAB® software available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters, or instrument applications.

View online videos to see for yourself
•See the 7000 Series scopes in action video demo

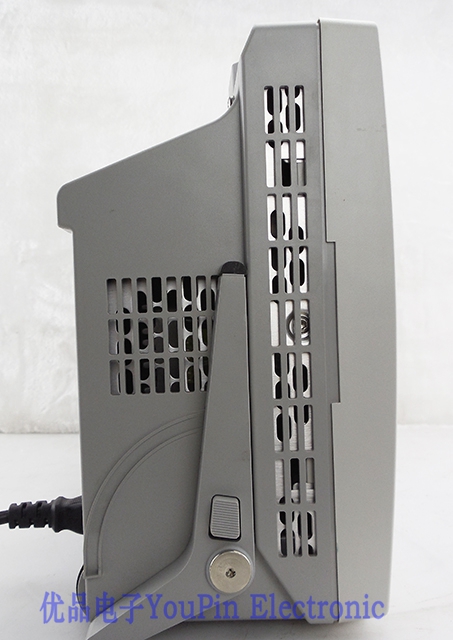

Keysight’s InfiniiVision DSO7104B, equipped with a 12.1” XGA display, comes in a quiet package that is just 6.5” deep, and weighs only 13 pounds. With the world’s fastest uncompromised update rate, up to 100,000 waveforms per second, see subtle signal detail and infrequent events other scopes miss. A wide range of application packages provide rapid measurement insight.

DSO7000-061             MATLAB basic digital analysis package, fixed perpetual license
DSO7000-062             MATLAB standard digital analysis package, fixed perpetual license
DSO7000-1CF            Soft carrying case
DSO7000-232             RS232/UART Serial Decode and Trigger, fixed perpetual license
DSO7000-553             MIL-STD-1553 Triggering and Decode Application, fixed perpetual license
DSO7000-A6J             ANSI Z540-1-1994 Calibration
DSO7000-AMS            CAN and LIN Automotive Serial Decode, fixed perpetual license
DSO7000-FLX             Flexray Measurements triggering and Decode, fixed perpetual license
DSO7000-LMT            Mask limit testing application license, fixed perpetual license
DSO7000-LSS            I2C and SPI Low Speed Serial Decode, fixed perpetual license
DSO7000-PLG            Continental European power cord - only for EU distributor w/ multi power cord standards
DSO7000-SEC           Secure enviroment mode, fixed perpetual license
DSO7000-SGM           Segmented memory application license, fixed perpetual license
DSO7000-SND           I2SDecode and Triggering Option, fixed perpetual license
DSO7004B-001          Passive Probe - 10073x 10:1 500MHz - Qty 4
DSO7004B-002          Passive Probe – N2873x 10:1 500MHz Passive Probe - Qty 4
N2732A                        Rack Mount Kit for the 7000 Series Oscilloscopes
N2733B                        Soft Carrying Case
N2737A                        DSO to MSO upgrade
N2873A                        Passive Probe, 10:1, 500 MHz, 1.3 m
N2874A                        Passive Probe, 10:1, 1.5 GHz, 1.3 m
N2876A                        Passive Probe, 100:1, 1.5 GHz, 1.3 m
N5406A                        FPGA dynamic probe option for Xilinx with InfiniiVision Series MSOs
N5423A                        I²C and SPI Serial Data Decode Option for InfiniiVision 6000 and 7000B Series Oscilloscopes
N5424A                        CAN/LIN Option InfiniiVision 6000 & 7000B Series Oscilloscopes (Option AMS)
N5432C                       FlexRay Triggering and Decode
N5454A                        Segmented memory acquisition for InfiniiVision Series oscilloscopes
N5455A                        (option LMT) Mask/Waveform Limit Testing for Keysight InfiniiVision 6000 & 7000B Oscilloscopes
N5457A                        RS-232/UART Serial Triggering and Decode Option
N5468A                        I²S triggering and Decode Option for InfiniiVision Series Oscilloscopes
N5469A                        MIL-STD 1553 Triggering and Decode
U1881A                        Power Measurement Application for InfiniiVision Oscilloscopes
