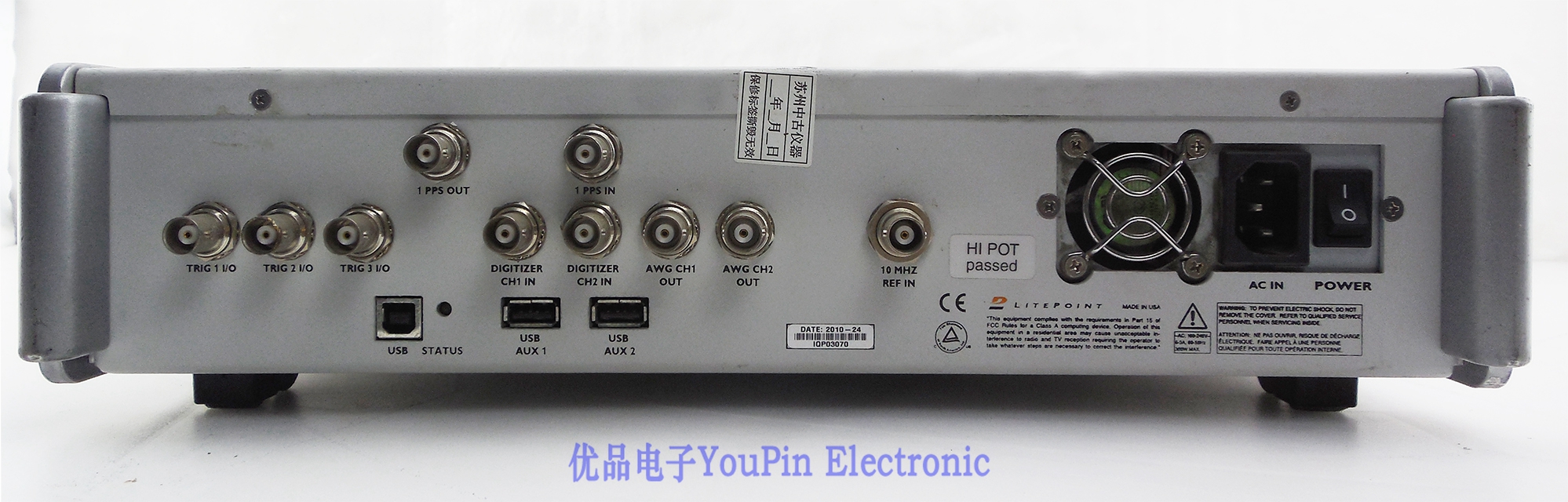

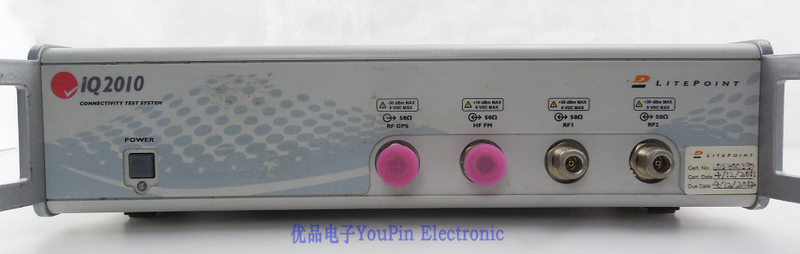

Litepoint IQ2010 Multi-communication connectivity test system

  • Litepoint
  • IQ2010
Menge:



Frequency Range:
•Bluetooth: 2.4 to 2.5 GHz
•FM: 76 to 108 MHz
•GPS: 1.57542 GHz (L1)
•WLAN: 2.4 to 2.5 GHz, 4.9 to 6.0 GHz
•WiMAX: 2.3 to 2.7 GHz, 3.3 to 3.8 GHz, 4.9 to 6.0 GHz

Input Power Range:
•FM: +10 dBm to -40 dBm
•WLAN: +30 dBm to -148 dBm/Hz
•WiMAX: +30 dBm to -148 dBm/Hz

Output Power Range:
•FM: -60 dBm to -110 dBm
•GPS: -60 dBm to -145 dBm
•WLAN: +10 dBm to -95 dBm
•WiMAX: +10 dBm to -95 dBm

Supported Technologies:
•WLAN
•Bluetooth
•MIMO
•FM
•GPS
•WiMAX




The LitePoint® IQ2010™ is a comprehensive, one-box test solution for all your connectivity testing needs:
 •WiFi, 802.11a/b/g/j/n and 802.11p
•Bluetooth, Classic (1.x, 2.x, 3.0) and Low Energy (4.0, 4.1)
•GPS
•FM
•MIMO
•WiMAX
•ZigBee

The IQ2010 dramatically streamlines the testing process for complex modules and devices:
 •Single Insertion, Multi-Radio, Test Technology:
    > 20% time savings compared with multi-insertion methods due to reduced handling and the elimination of multiple device boot times
•Concurrent Testing of up to 3 standards:
    Up to 50% test time reduction in contrast to sequential approaches
•Proprietary Sequence-Based Test (SBT) methods minimize DUT control and response times
