Keysight(Agilent)
E9301A
| Menge: | |
|---|---|
•Measure the average power of all modulation formats
•Wide dynamic range (-60 dBm to +20 dBm) and frequency range 10 MHz to 6 GHz
•High maximum power specification
•Low SWR for reducing mismatch uncertainty
•Calibration factors linearity and temperative compensation data stored in EEPROM
•Fast measurement speeds (up to 400 readings per second with the Keysight E4416A)
•Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters

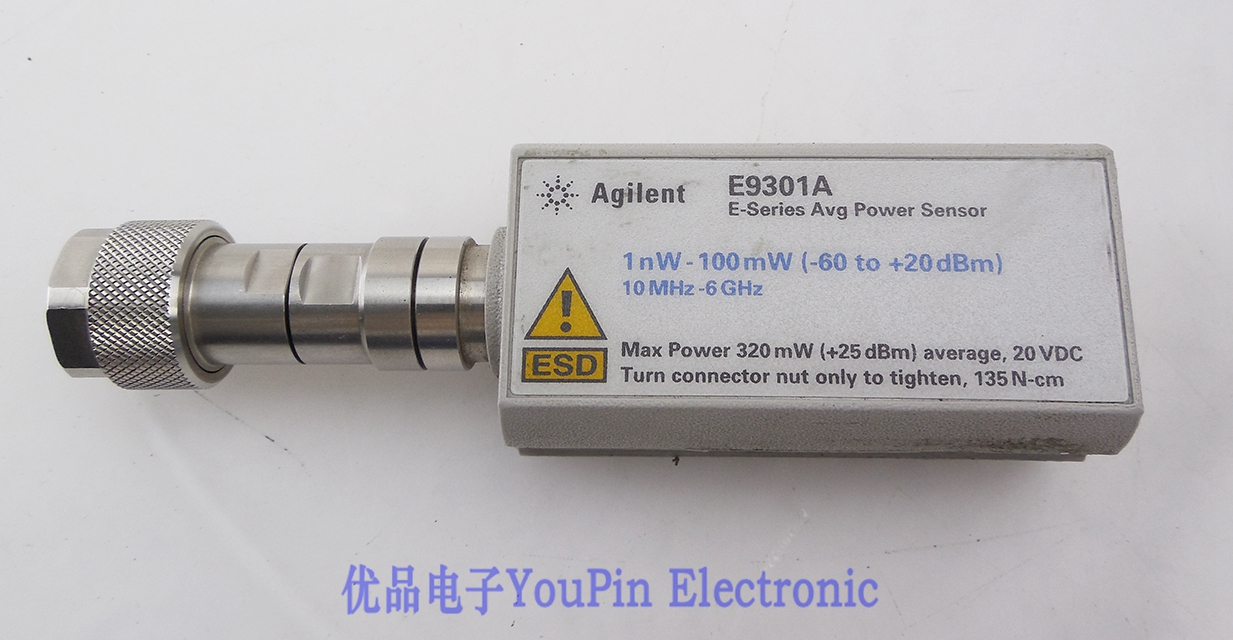

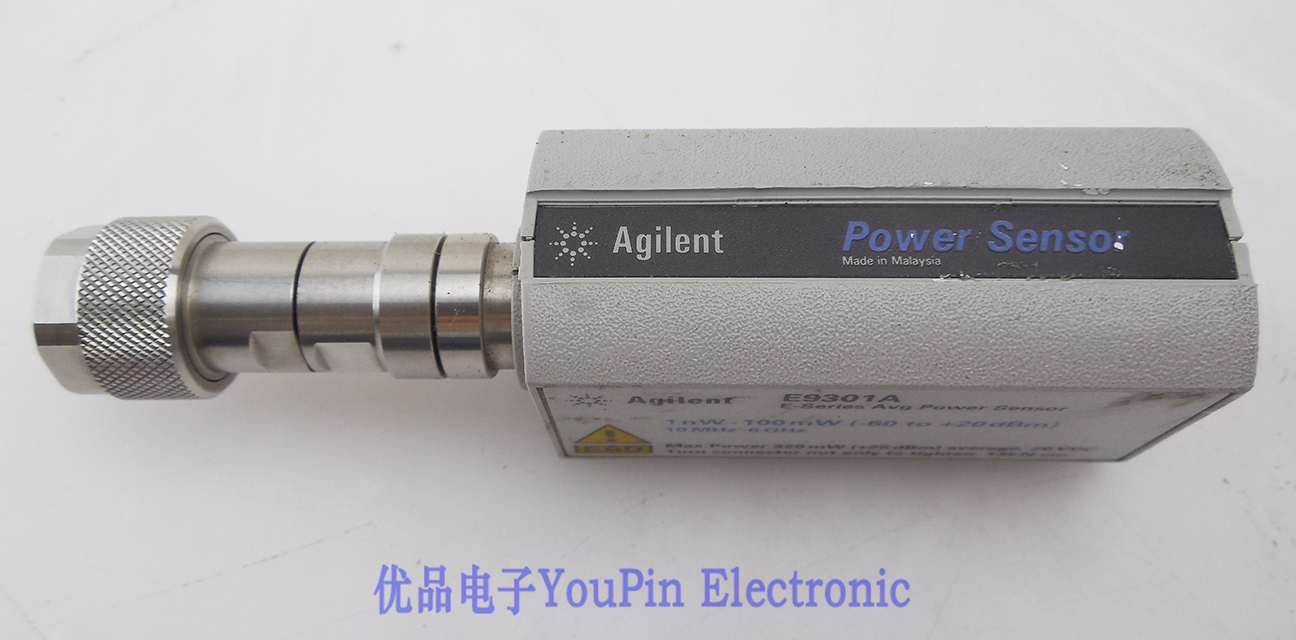

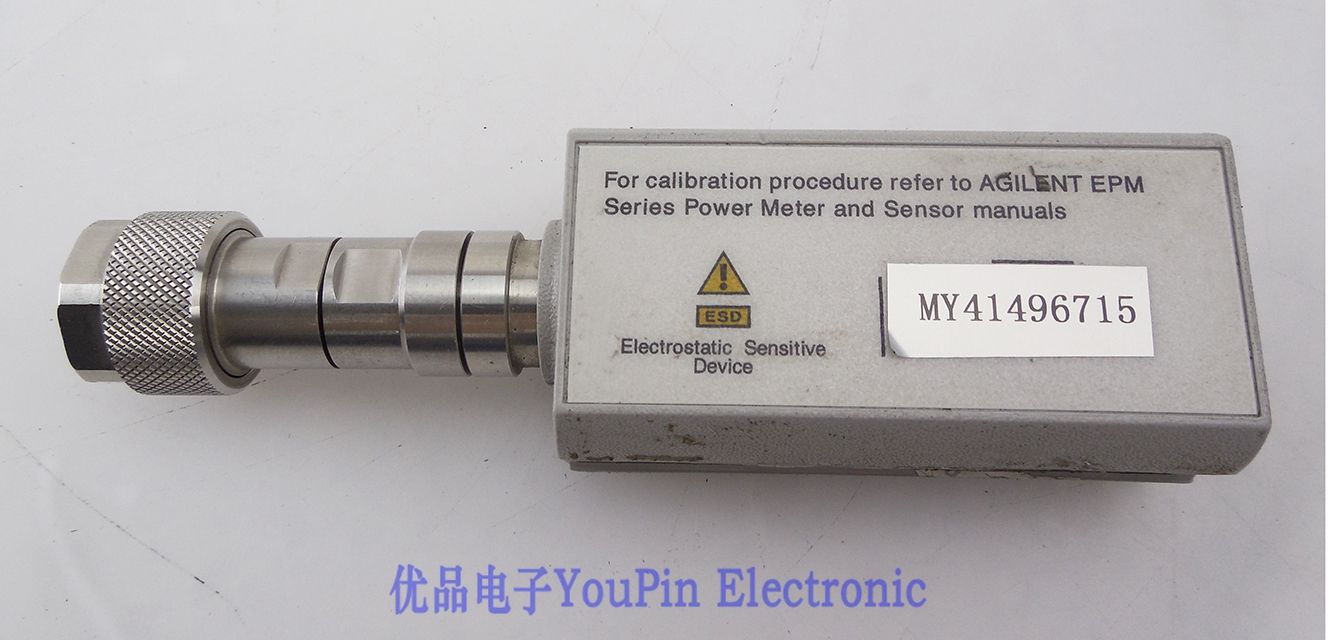

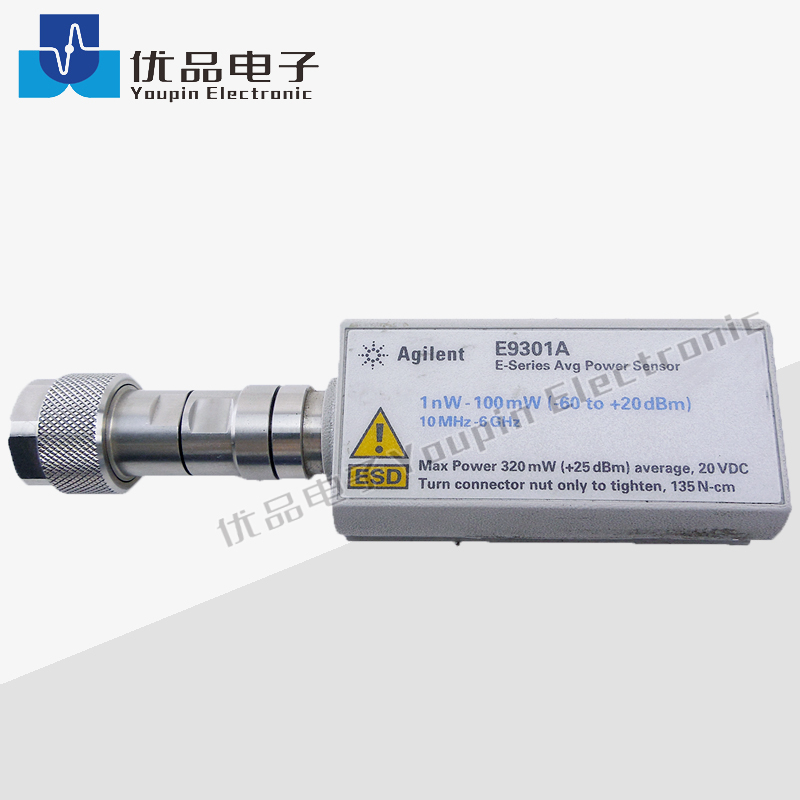

The E9301A diode power sensor measures average power over the frequency range 10 MHz to 6 GHz and power range -60 to +20 dBm (80 dB dynamic range).
E9301A-A6J ANSI Z540-1-1994 Calibration
