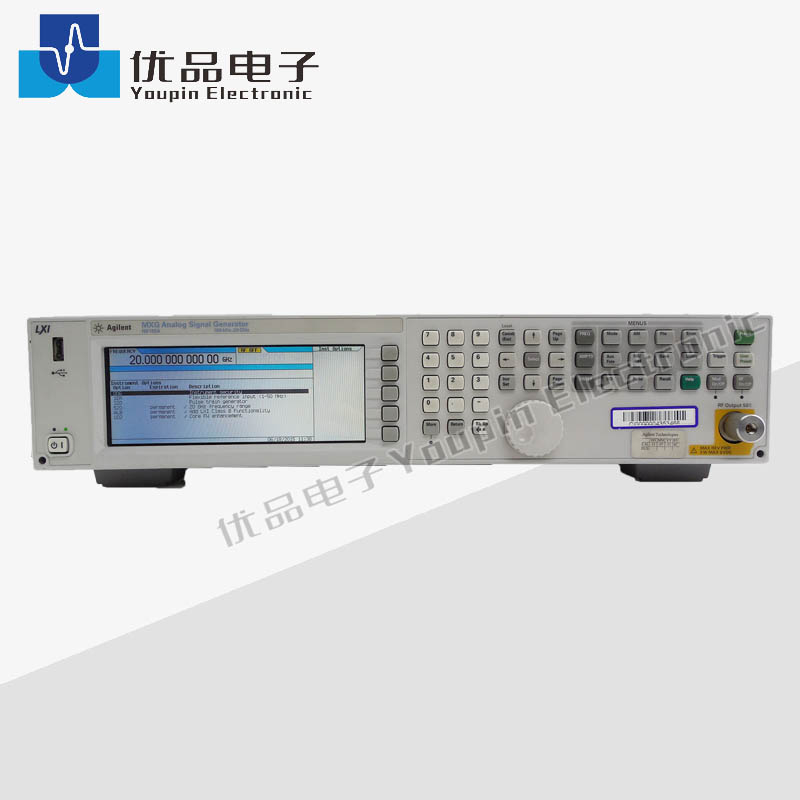

Keysight(Agilent)
N5183A
| Menge: | |
|---|---|
Signal Characteristics
•100 kHz to 20, 31.8 or 40 GHz
•+19 dBm at 20 GHz output power
•≤ 600 µs frequency switching speeds
•≤ -116 dBc/Hz typical phase noise at 20 kHz offset
Modulation and Sweep
•AM, FM, ΦM, and pulse modulation
•< 10 ns pulse rise/fall time and 20 ns pulse widths
•Digital and step sweep
Automation and Communcation Interface
•100BaseT LAN, USB 2.0 and GPIB
•LXI compliant
•SCPI and IVI-COM drivers
•Backward compatible with PSG, 8340, 8360 and 8370 Series signal generators
Microwave signal generation optimized for manufacturing
N5183A MXG microwave analog signal generators deliver the performance needed for broadband component manufacturing up to 40 GHz. This instrument provides ≤ 900 µs frequency switching (≤600 µs typically) to improve test times for applications like antenna test and manufacturing, with a small size (2RU) to better utilize rack space. Excellent power and level accuracy make the MXG microwave a reliable stimulus for driving high power devices. The N5183A MXG microwave can be configured to meet your test needs today, from LO substitution and CW interferer to analog modulation for device characterization, and is easily upgraded to meet your needs in the future.
Simplified self-maintenance maximizes uptime
Every element of the MXG microwave is designed to reduce cost of ownership, from field replaceable assemblies to tools for on-site performance verification, instrument uptime is maximized with simplified self-maintenance and repair.
N5183A-006 Instrument security
N5183A-1CM Rackmount kit
N5183A-1CN Front handle kit
N5183A-1CP Rackmount with front handle kit
N5183A-1CR Rack slide kit
N5183A-1E1 Step attenuator
N5183A-1EA High output power
N5183A-1ED Type-N (f) RF output connector
N5183A-1EM Move RF output to rear panel
N5183A-1ER Flexible reference input (1-50MHz)
N5183A-320 Pulse train generator, fixed perpetual license
N5183A-520 Frequency range from 100kHz to 20GHz
N5183A-532 Frequency range from 100kHz to 31.8GHz
N5183A-540 Frequency range from 100kHz to 40GHz
N5183A-A6J ANSI Z540-1-1994 Calibration
N5183A-ABJ Hard Copy of MXG Japanese Users Guide
N5183A-AKT Russia - russian localization
N5183A-AMG Calibration + Uncertainties + Guardbanding (Accredited)
N5183A-AXT Hard transit case
N5183A-CVR Front panel cover
N5183A-UK6 Commercial calibration certificate with test data
N5183A-UNT AM, FM, phase modulation
N5183A-UNU Pulse modulation
N5183A-UNW Narrow pulse modulation
N5183A-UNZ Fast frequency switching speed
1CM010A Rackmount Flange Kit 88.1mm H (2U) - Two Flange Brackets, Four Hole Plugs
1CP004A Rackmount Flange and Handle Kit 88.1mm H (2U) - Brackets, Handles, Hole Plugs
