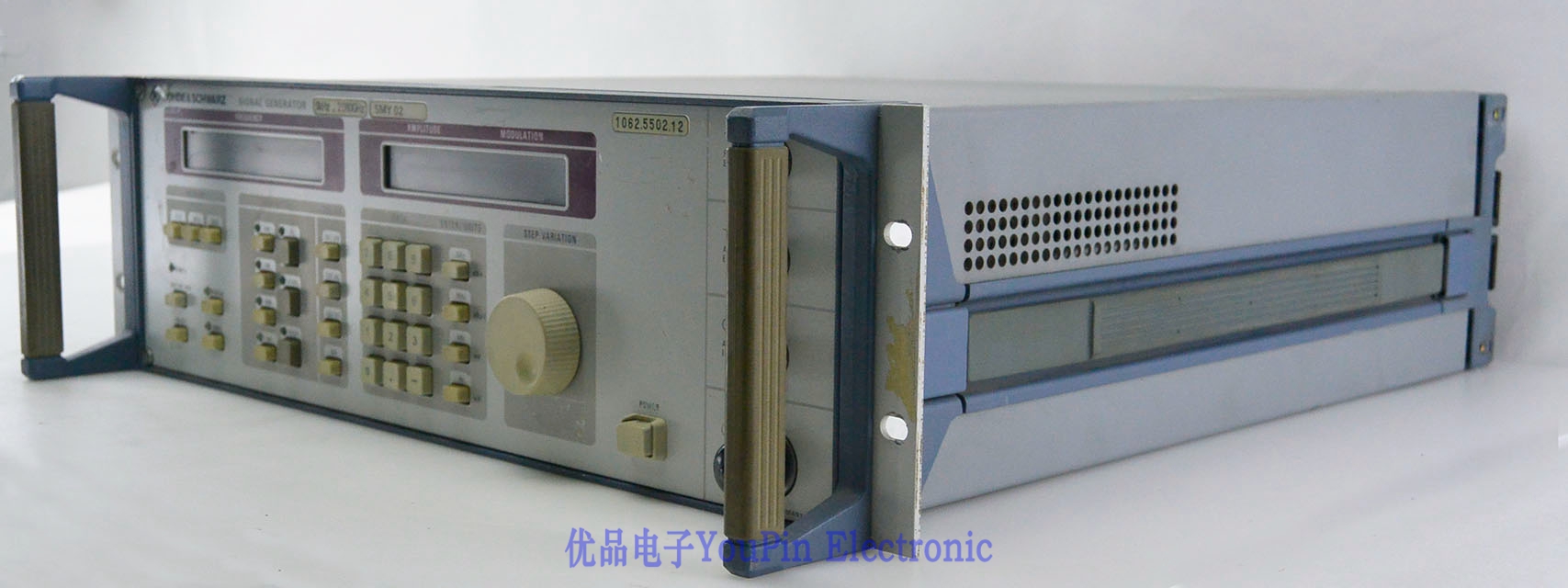

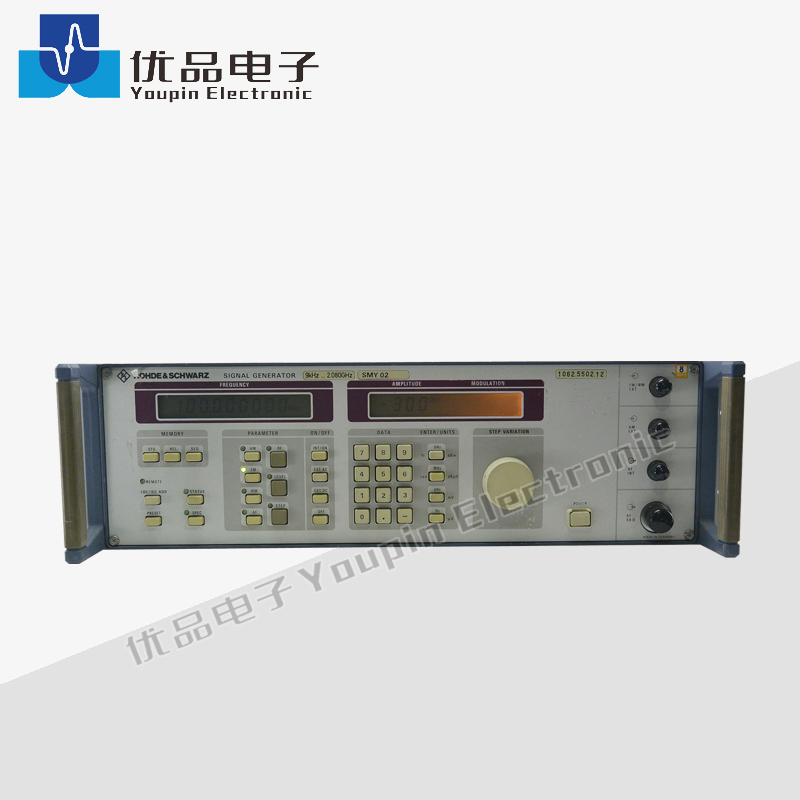

R&S SMY02 Signal Generator

  • R&S
  • SMY02
Menge:



•Level range -140 dBm to +13 dBm (19 dBm overrange) , sufficient even for receivers of highest sensitivity
•High level accuracy and low RF leakage allowing accurate and undegraded sensitivity measurements
•FM-DC with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches
•Low SSB phase noise( -114 dBc/Hz) and high spurious rejection for all in-channel and blocking measurements
•Low residual FM affording ample of margin for S/N measurements
•Modulation generator 1 Hz to 500 kHz for modulation frequency response measurements
•Stereo channel separation of 50 dB and low harmonic distortion for testing FM stereo receivers
•Non-interrupting level setting over a range of 20 dB for reproducible measurement of squelch hysteresis
•Frequency resolution 1 Hz, suitable also for narrowband test items
•FM-DC, deviation up to 20 MHz for VCO simulation
•FM bandwidth 2 MHz for fast FSK and telemetry applications
•High output level up to 19 dBm (25 dBm with option R&S SMY-B40) for component and overdrive testing
•AF synthesizer 1 Hz to 500 kHz, separate use as AF signal source for external applications possible, eg recording of AF frequency response
•Remote-control interface IEC625/IEEE488 for use in automatic test systems
•RF sweep
•Sequence function and SEQ input for semi-automatic use




Signal generators of the Rohde & Schwarz  SMY family from Rohde&Schwarz are cost-effective instruments for testing AM, FM and jM receivers as well as for component measurements.
Designed exclusively for the main applications of signal generators by cutting out the unnecessaries, R&S SMY features an outstanding price/performance ratio. Thanks to its comprehensive basic features and excellent signal characteristics, it is an economical solution for universal use in lab, production and servicing environments.
