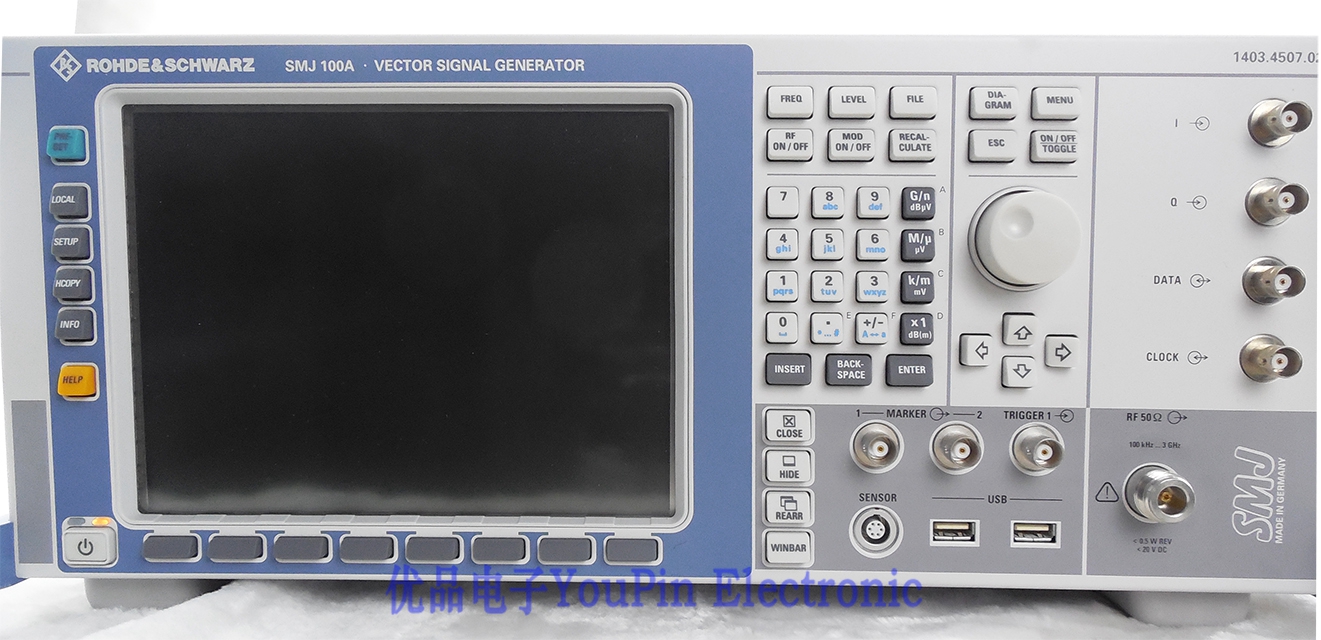

R&S SMJ100A Vector Signal Generator

  • R&S

  • SMJ100A


•IQ modulator with 200 MHz RF bandwidth
•Very low SSB phase noise of typ. - 133 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
•Wideband noise of typ. -153 dBc (CW, f = 1 GHz, >5 MHz carrier spacing, 1 Hz measurement bandwidth)
•Digital Standard EUTRA/LTE available
•Excellent ACLR performance of typ. +69 dB for 3GPP FDD (test model 1, 64 DPCHs)
•High-stability reference oscillator as standard
•High level repeatability
•Very short frequency and level setting time (<5ms); only 450 μs in List mode
•Electronic attenuator up to 6 GHz over the entire level range from -145 dBm to +13 dBm
•Four code channels in realtime for 3GPP FDD
•Different modulation in each slot for GSM/EDGE
•Baseband generator with realtime signal generation
•Arbitrary waveform generator with up to 64 Msamples
•Signals up to 80 MHz bandwidth if the internal baseband generator is used
•Color display with 800 x 600 pixels (SVGA format)
•Intuitive user interface with graphical display of signal flow (block diagram)
•Graphical display of baseband signal through built-in transients recorder
•Context-sensitive Help system
•Tooltips for all edit fields
•Remote control via GPIB and LAN
•Many features for GPS option
•Pulse Sequencer software generates complex pulses and bursts

The R&S SMJ100A meets all challenges that diverse applications place on modern vector signal generators. For example, it offers the signal quality and flexibility required in research and development – not to mention a convenient graphical user interface (GUI). And this is by no means all the R&S SMJ100A has to offer – a fact that becomes evident in production, where it excels with its flexible baseband and low setting times. The baseband meets all requirements, from providing realtime signals to replaying precalculated waveforms.

Equipped with 3 GHz or 6 GHz frequency options, the R&S SMJ100A covers all important frequency bands essential in digital RF transmission. The internal baseband generator option handles a multitude of digital standards, e.g. GSM/EDGE, 3GPP FDD and CDMA2000 1). Its characteristics make the R&S SMJ100A the ideal all-purpose vector signal generator, supporting a wide variety of applications.

To handle future standards, the R&S SMJ100A features a large bandwidth; thus, new standards such as WiMAX pose no problem. The internal arbitrary waveform generator is proof of its versatility. It offers sequences up to 128 Msamples in length and can be used with diverse signals from R&S WinIQSIM or Matlab.

R&S SMJ-B103  100 kHz to 3 GHz
R&S SMJ-B106  100 kHz to 6 GHz
R&S SMJ-B20     FM/φM Modulator
R&S SMJ-B90     Phase Coherence
R&S SMJ-B9       Baseband Generator with ARB (128 Msamples) and Digital Modulation
R&S SMJ-B10     Baseband Generator with ARB (64 Msamples) and Digital Modulation
R&S SMJ-B11     Baseband Generator with ARB (16 Msamples) and Digital Modulation
R&S SMJ-B13     Baseband Main Module
R&S SMJ-B16     Differential I/Q Output
R&S SMJ-B18     Digital Baseband Output
R&S SMJ-B50     Baseband Generator with ARB (64 Msample)
R&S SMJ-B51     Baseband Generator with ARB (16 Msample)
R&S SMJ-K40     Digital Standard GSM / EDGE
R&S SMJ-K41     Digital Standard EDGE Evolution
R&S SMJ-K42     Digital Standard 3GPP FDD
R&S SMJ-K43     3GPP FDD Enhanced MS/BS Tests incl. HSDPA
R&S SMJ-K44     Digital Standard GPS
R&S SMJ-K45     Digital Standard 3GPP FDD HSUPA
R&S SMJ-K46     Digital Standard CDMA2000® incl. 1xEV-DV
R&S SMJ-K47     Digital Standard 1xEV-DO
R&S SMJ-K48     Digital Standard IEEE 802.11 (a/b/g)
R&S SMJ-K49     Digital Standard IEEE 802.16
R&S SMJ-K50     Digital Standard TD-SCDMA
R&S SMJ-K51     Digital Standard Enhanced TD-SCDMA
R&S SMJ-K52     Digital Standard DVB-H / DVB-T
R&S SMJ-K53     Digital Standard DAB / T-DMB
R&S SMJ-K54     Digital Standard IEEE 802.11n
R&S SMJ-K55     Digital Standard EUTRA/LTE
R&S SMJ-K56     Digital Standard XM RADIO
R&S SMJ-K57     Digital Standard FM Stereo/RDS
R&S SMJ-K58     Digital Standard Sirius Digital Radio
R&S SMJ-K59     Digital Standard HSPA+
R&S SMJ-K60     Digital Standard Bluetooth® EDR
R&S SMJ-K61     Multicarrier CW Signal Generation
R&S SMJ-K68     Digital Standard TETRA Release 2
R&S SMJ-K69     LTE Closed-Loop BS Test
R&S SMJ-K81     LTE Logfile Generation
R&S SMJ-K84     LTE Release 9 + Enhanced Features
R&S SMJ-K85     LTE Release 10 / LTE-Advanced
R&S SMJ-K86     Digital Standard IEEE 802.11ac
R&S SMJ-K87     1xEV-DO Rev. B
R&S SMJ-K240   Digital Standard GSM/EDGE
R&S SMJ-K241   Digital Standard EDGE Evolution
R&S SMJ-K242   Digital Standard 3GPP FDD
R&S SMJ-K243   3GPP Enhanced MS/BS Tests incl. HSDPA
R&S SMJ-K244   Digital Standard GPS
R&S SMJ-K246   Digital Standard CDMA2000® incl. 1xEV-DV
R&S SMJ-K247   Digital Standard 1xEV-DO Rev. A
R&S SMJ-K248   Digital Standard IEEE 802.11 (a/b/g)
R&S SMJ-K249   Digital Standard IEEE 802.16
R&S SMJ-K250   Digital Standard TD-SCDMA
R&S SMJ-K251   TD-SCDMA Enhanced BS/MS Tests
R&S SMJ-K252   Digital Standard DVB-H / DVB-T
R&S SMJ-K253   Digital Standard DAB/T-DMB
R&S SMJ-K254   Digital Standard IEEE 802.11n
R&S SMJ-K255   Digital Standard LTE/EUTRA
R&S SMJ-K259   Digital Standard HSPA+
R&S SMJ-K260   Digital Standard Bluetooth EDR
R&S SMJ-K261   Multicarrier CW Signal Generation
R&S SMJ-K262   Additional white Gaussian noise (AWGN)
R&S SMJ-K268   Digital Standard TETRA Release 2
R&S SMJ-K284   LTE Release 9 + Enhanced Features
R&S SMJ-K285   LTE Release 10 / LTE-Advanced
R&S SMJ-K286   IEEE 802.11ac
R&S SMJ-K287   1xEV-DO Rev. B
R&S SMJ-K6        Pulse Sequencer
R&S SMJ-K62     Additive White Gaussian Noise
R&S SMJ-K80     BER/BLER Measurement
R&S SMJ-B81     Rear Connectors
R&S SMJ-K256   Playback of XM Radio Waveforms
R&S SMJ-K352   HD Radio™ Test waveforms
R&S SMJ-K353   DAB+ Streams
R&S SMJ-K354   T-DMB/DAB Streams
