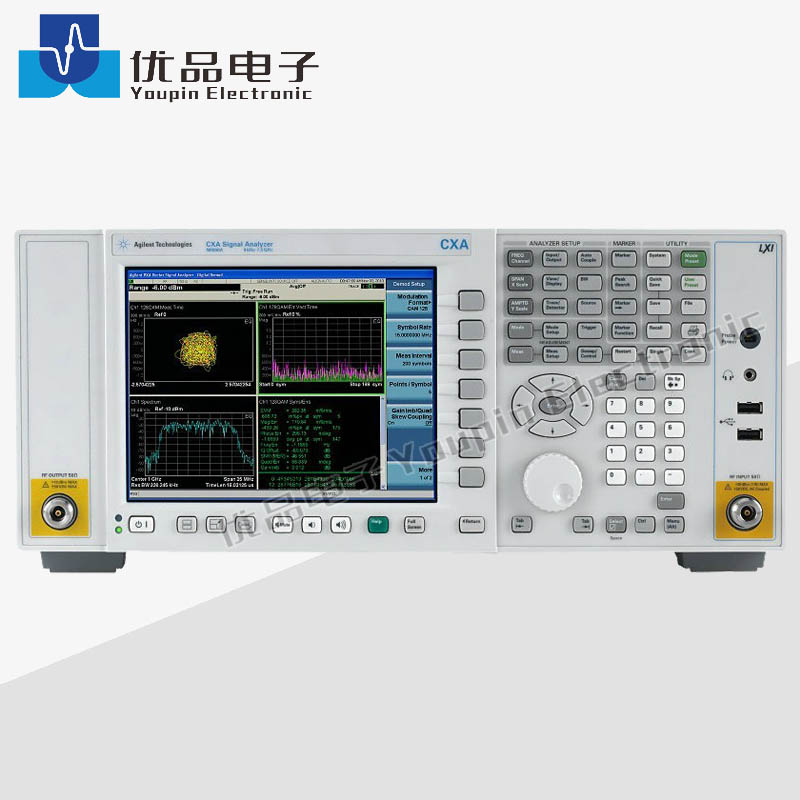

Keysight(Agilent) N9000A CXA Signal Analyzer

Functionality - See the latest enhancements
•9 kHz to 3, 7.5, 13.6 or 26.5 GHz; internal preamplifier options up to 26.5 GHz
•10 MHz (standard), 25 MHz (optional) analysis bandwidth
•Optional built-in tracking generator 3 or 6 GHz (up to 7.5 GHz models)
•Optional additional 75 ohm input connector, 1.5 GHz (up to 7.5 GHz models)

Performance
•±0.5 dB absolute amplitude accuracy
•Up to +15 dBm third order intercept (TOI)
•–163 dBm at 1 GHz, –147 dBm at 26.5 GHz displayed average noise level (DANL) with preamplifier
•Up to 73 dBc W-CDMA ACLR dynamic range (with noise correction on)

Measurement application & software
•Supports >25 measurement applications, covering cellular communication, wireless connectivity, digital video, and general purpose
•Advanced analysis of up to 70 signal formats, software runs inside the CXA with 89600 VSA software
•Keysight's PowerSuite one-button power measurements included as standard

Automation & communication interface
•LXI compliant, SCPI, and IVI-COM
•USB 2.0, 1000 Base-T LAN, GPIB
•Programming remote language compatibility with ESA and other X-Series
•Common X-Series user interface / Open Windows 7 operating system (standard)
- Migrate your existing CXA from Windows XP to Windows 7




Master the essentials with the N9000A CXA
The CXA signal analyzer, the leading low-cost tool for essential signal characterization, covers the basics of general purpose signal analysis, while providing crucial functionality. Upgradability with measurement applications and software allow you to work with the CXA in more than 75 different modulation formats. The CXA is also an excellent teaching tool for RF and microwave RF and microwave signal analysis, from basic circuit characterization to advanced signal analysis. Get must-have capability with X-Series expandability and seamless integration with other X-Series models—and master the essentials.

The N9000A CXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements, and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs — now and in the future.




N9000A-1CM       Rackmount kit
N9000A-1CN       Front handle kit
N9000A-1CP       Rackmount and handle kit
N9000A-1CR       Rack slide kit
N9000A-503        Frequency range, 9 kHz to 3.0 GHz
N9000A-507        Frequency range, 9 kHz to 7.5 GHz
N9000A-513        Frequency range, 9 kHz to 13.6 GHz
N9000A-526        Frequency range, 9 kHz to 26.5 GHz
N9000A-A6J        ANSI Z540-1-1994 Calibration
N9000A-AKT        Getting started guide CXA Russian localization
N9000A-AMG       Calibration + Uncertainties + Guardbanding (Accredited)
N9000A-B25        Analysis Bandwidth, 25 MHz
N9000A-BAG       Accessory pouch
N9000A-C75        Connector, 75 ohm additional RF Input, 1.5 GHz
N9000A-CR3       Connector, Wideband IF output
N9000A-DVR       DVD-ROM/CD-R/RW drive
N9000A-EDP       Enhanced display package
N9000A-EMC      Basic EMC functionality
N9000A-ESC       External source control
N9000A-FSA        Fine resolution step attenuator
N9000A-HTC       Hard transit case
N9000A-KB2        US 65 key USB keyboard
N9000A-KYB        Keyboard, USB
N9000A-MLP        Minimum loss pad, 50 to 75 ohm
N9000A-P03         Preamplifier, 3 GHz
N9000A-P07         Preamplifier, 7.5 GHz
N9000A-P13         Preamplifier, 13.6 GHz
N9000A-P26         Preamplifier, 26.5 GHz
N9000A-PFR        Precision frequency reference
N9000A-PLG        Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N9000A-PRC       Portable configuration
N9000A-SF1        Security features, exclude launching programs
N9000A-SF2        Security features, prohibit saving results
N9000A-SSD       Additional removable solid state drive
N9000A-T03        Tracking generator, 9 kHz to 3 GHz
N9000A-T06        Tracking generator, 9 kHz to 6 GHz
N9000A-UK6       Commercial calibration certificate with test data
N9000A-W7S       Operating system, Windows 7 sticker, for Demo only
BV0005A               BenchVue Spectrum Analyzer Pro Software License
N6171A                 MATLAB Software
N6171A-M01        MATLAB-Basic Package, individual license - node-locked
N6171A-M02        MATLAB-Standard Package, individual license - node-locked
N6171A-M03        MATLAB-Advanced Package, individual license - node-locked
N9051B                 Pulse Measurement Software
N9051B-2FP        Pulse measurement software, fixed perpetual, license
N9051B-2TP        Pulse measurement software, fixed, transportable perpetual license
N9051B-3FP        Phase and frequency measurements, fixed perpetual license
N9051B-3TP        Phase and frequency measurements, transportable perpetual license
N9051B-4FP        Extended analysis and statistics, fixed perpetual license
N9051B-4TP        Extended analysis and statistics, transportable perpetual license
N9051B-5FP        Deep capture, fixed perpetual license
N9051B-5TP        Deep capture, transportable perpetual license
N9051B-A2B        Upgrade from N9051A to N9051B
W6141A                EMI measurement application for CXA
W6141A-2FP        EMI measurement application for CXA, fixed perpetual license
W6141A-2TP        EMI measurement application for CXA, transportable perpetual license
W6141A-MEU      EMI Measurement Application Minor Enhancements Update
W6152A                Digital cable TV measurement application for CXA
W6152A-2FP       DVB-C/J.83 Annex A/C measurement application for CXA, fixed perpetual license
W6152A-2TP       DVB-C/J.83 Annex A/C measurement application for CXA, transportable perpetual license
W6152A-3FP       J.83 Annex B measurement application for CXA, fixed perpetual license
W6152A-3TP       J .83 Annex B measurement application for CXA, transportable perpetual license
W6152A-MEU      Minor enhancement update
W6153A                DVB-T/H/T2 measurement application for CXA
W6153A-2FP       DVB-T/H measurement application for CXA, fixed perpetual license
W6153A-2TP       DVB-T/H measurement application for CXA, transportable perpetual license
W6153A-3FP       DVB-T2 measurement application for CXA, fixed perpetual license
W6153A-3TP       DVB-T2 measurement application for CXA, transportable perpetual license
W6153A-MEU      Digital Video Measurement Application Minor Enhancements Update
W6155A                ISDB-T/Tmm measurement application for CXA
W6155A-2FP       ISDB-T measurement application for CXA, fixed perpetual license
W6155A-2TP       ISDB-T measurement application for CXA, transportable perpetual license
W6155A-3FP       ISDB-Tmm measurement application for CXA, fixed perpetual license
W6155A-3TP       ISDB-Tmm, measurement application for CXA, transportable perpetual license
W6156A                DTMB (CTTB) measurement application for CXA
W6156A-2FP       DTMB (CTTB) measurement application for CXA, fixed perpetual license
W6156A-2TP       DTMB (CTTB) measurement application for CXA, transportable perpetual license
W6158A               CMMB measurement application for CXA
W6158A-2FP       CMMB measurement application for CXA, fixed perpetual license
W6158A-2TP       CMMB measurement application for CXA, transportable perpetual license
W9062A                SCPI language compatibility for CXA
W9062A-2FP        SCPI language compatibility for CXA, fixed perpetual license
W9063A                Analog demodulation measurement application for CXA
W9063A-2FP        Analog demodulation measurement application for CXA, fixed perpetual license
W9063A-2TP        Analog demodulation measurement application for CXA, transportable perpetual license
W9063A-3FP        FM stereo measurement application for CXA, fixed perpetual license
W9063A-3TP        FM Stereo measurement application for CXA, transportable perpetual license
W9063A-MEU      Minor enhancement update
W9064A                VXA vector signal analysis measurement application for CXA
W9064A-1FP        Vector signal analysis measurement application for CXA, fixed perpetual license
W9064A-1TP        Vector signal analysis measurement application, transportable license
W9064A-2FP        Flexible digital modulation analysis measurement application for CXA, fixed perpetual license
W9064A-2TP        Flexible digital modulation analysis measurement application for CXA, transportable license
W9064A-MEU       Minor enhancement update
W9068A                 Phase noise measurement application for CXA
W9068A-2FP        Phase noise measurement application for CXA, fixed perpetual license
W9068A-2TP        Phase noise measurement application for CXA, transportable perpetual license
W9068A-MEU      Minor enhancement update
W9069A                Noise figure measurement application for CXA
W9069A-1FP        Noise figure measurement application for CXA, fixed perpetual license
W9069A-1TP        Noise figure measurement application for CXA, transportable perpetual license
W9069A-2FP        Noise figure measurement application advanced features for CXA, fixed perpetual license
W9069A-2TP        Noise figure measurement application advanced features for CXA, transportable perpetual license
W9069A-MEU       Minor enhancement update
W9071A                GSM/EDGE/Evo measurement application for CXA
W9071A-2FP        GSM/EDGE measurement application for CXA, fixed perpetual, license
W9071A-2TP        GSM/EDGE measurement application for CXA, transportable perpetual, license
W9071A-3FP        EDGE Evo measurement application for CXA, fixed perpetual license
W9071A-3TP         EDGE Evo measurement application for CXA, transportable perpetual license
W9071A-MEU       Minor enhancement update
W9072A                 CDMA2000 measurement application for CXA
W9072A-2FP        CDMA2000 measurement application for CXA, fixed perpetual license
W9072A-2TP        CDMA2000 measurement application for CXA, transportable perpetual license
W9073A                 W-CDMA/HSPA+ measurement application for CXA
W9073A-1FP         W-CDMA measurement application for CXA, fixed perpetual license
W9073A-1TP         W-CDMA measurement application for CXA, transportable perpetual license
W9073A-2FP        HSDPA / HSUPA measurement application for CXA, fixed perpetual license
W9073A-2TP        HSPA measurement application for CXA, transportable perpetual license
W9073A-3FP        HSPA+ measurement application for CXA, fixed perpetual license
W9073A-3TP        HSPA+ measurement application for CXA, transportable perpetual license
W9073A-MEU       Minor enhancement update
W9075A                 Mobile WiMAX measurement application for CXA
W9075A-2FP         Mobile WiMAX measurement application for CXA, fixed perpetual, license
W9075A-2TP         Mobile WiMAX measurement application for CXA, transportable perpetual, license
W9076A                 1xEV-DO measurement application for CXA
W9076A-1FP        1xEV-DO measurement application for CXA,fixed perpetual license
W9076A-1TP        1xEV-DO measurement application for CXA, transportable perpetual license
W9077A                 WLAN 802.11a/b/g/n measurement application for CXA
W9077A-2FP         WLAN 802.11a/b/g measurement application for CXA, fixed perpetual license
W9077A-2TP         WLAN 802.11a/b/g measurement application for CXA, transportable perpetual license
W9077A-3FP         WLAN 802.11n measurement application for CXA, fixed perpetual license
W9077A-3TP         WLAN 802.11n, measurement application for CXA, transportable perpetual license
W9077A-6FP         WLAN 802.11ah Measurement
W9079A                  TD-SCDMA/HSPA measurement application for CXA
W9079A-1FP         TD-SCDMA measurement application for CXA, fixed perpetual license
W9079A-1TP         TD-SCDMA measurement application for CXA, transportable perpetual license
W9079A-2FP          HSPA measurement application for CXA, fixed perpetual license
W9079A-2TP          HSPA measurement application for CXA, transportable perpetual license
W9079A-MEU         Minor enhancement update
W9080B                   LTE/LTE-Advanced FDD Measurement Application for CXA
W9080B-1FP          LTE-FDD Measurement Application For the CXA, Fixed Perpetual License
W9080B-2FP          LTE-Advanced FDD Measurement Application for the CXA, Fixed Perpetual License
W9081A                   Bluetooth measurement application for CXA
W9081A-2FP           Bluetooth measurement application for CXA, fixed perpetual license
W9081A-2TP           Bluetooth measurement application for CXA, transportable perpetual license
W9081A-MEU          Minor enhancement update
W9082B                    LTE/LTE-Advanced TDD Measurement Application for CXA
W9082B-1FP           LTE-FDD Measurement Application For the CXA, Fixed Perpetual License
W9082B-2FP           LTE-Advanced TDD Measurement Application for the CXA, Fixed Perpetual License
W9083A                    Multi-Standard Radio (MSR) measurement application for CXA
W9083A-1FP           Multi-Standard Radio (MSR), measurement application for CXA, fixed perpetual license
W9083A-1TP           Multi-Standard Radio, MSR, measurement application for CXA, transportable perpetual license
