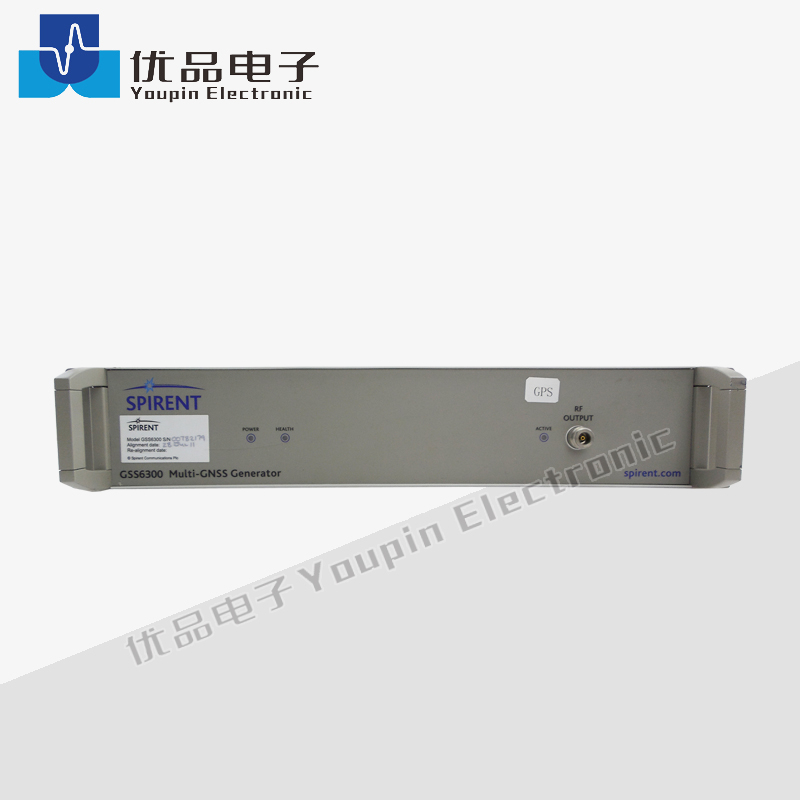

The GSS6300 GNSS Signal Generator from Spirent has been designed specifically for high volume production test applications for devices that use commercial GPS/SBAS, GLONASS and/or Galileo receivers.
•Single channel GPS/SBAS L1 C/A and/or GLONASS L1 C/A and/or Galileo E1 signals
•Easily field upgradable to add GLONASS and/or Galileo to existing GSS6300
•IEEE-488, USB or RS-232 control interfaces
•Equivalent GPS/SBAS performance to Spirent’s proven GSS6100
•Alternative “instant start” continuous run mode
•Supplied with Spirent SimCHANTM software
•Industry leading accuracy, fidelity and reliability
•A GSS6300 configured with GPS supports L1 SBAS messages
•Comprehensive remote command set for easy ATE integration
•Rack mount 2U chassis
•In-rack annual calibration
•Interactive run time control over power level, Doppler, PRN, GPS time and data message for each GNSS signal
•May be synchronized to external systems via 1PPS/ Trigger, reference frequency input/output and 1PPS output
