•Narrowband and broadband detection
•100 dB dynamic range
•Real-time sweep speeds (40 ms/sweep)
•Integrated T/R test set
•Synthesized source with 1-Hz resolution
•Standard LAN interface
•Standard Internal Keysight Instrument BASIC (IBASIC)
•Standard 2, 6, and 12-port switching test sets available

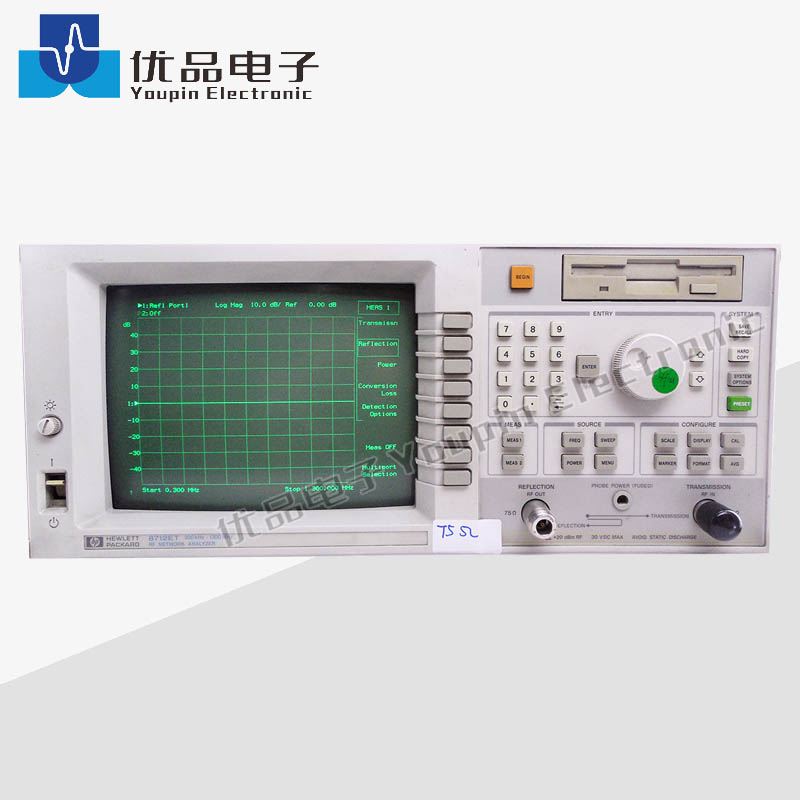

The Keysight 8712ET features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. Two independent channels can measure and display two device parameters, such as transmission and reflection response, in a variety of formats including complex impedance, SWR, and delay, on rectangular, polar or Smith-chart displays. These analyzers also employ vector-error-correction techniques to enhance measurement accuracy.
For a wider range of output power levels to test active devices and components, Option 1E1 adds a 60-dB step attenuator as a standard feature, which extends the lowest power-level setting to -60 dBm. Both 50-ohm and 75-ohm versions are available.
11857B Test Port Cables, Type-N, 75 Ohms
11857F Test Port Cable Set, Type-F, 75 Ohms
85032E Economy Mechanical Calibration Kit, DC to 6 GHz, Type-N, 50 ohm
85036B Standard Mechanical Calibration Kit, DC to 3 GHz, Type-N, 75 ohm
85036E Economy Mechanical Calibration Kit, DC to 3 GHz, Type-N, 75 ohm
85039B Economy Mechanical Calibration Kit, DC to 3 GHz, Type-F, 75 ohm
