Keysight(Agilent)

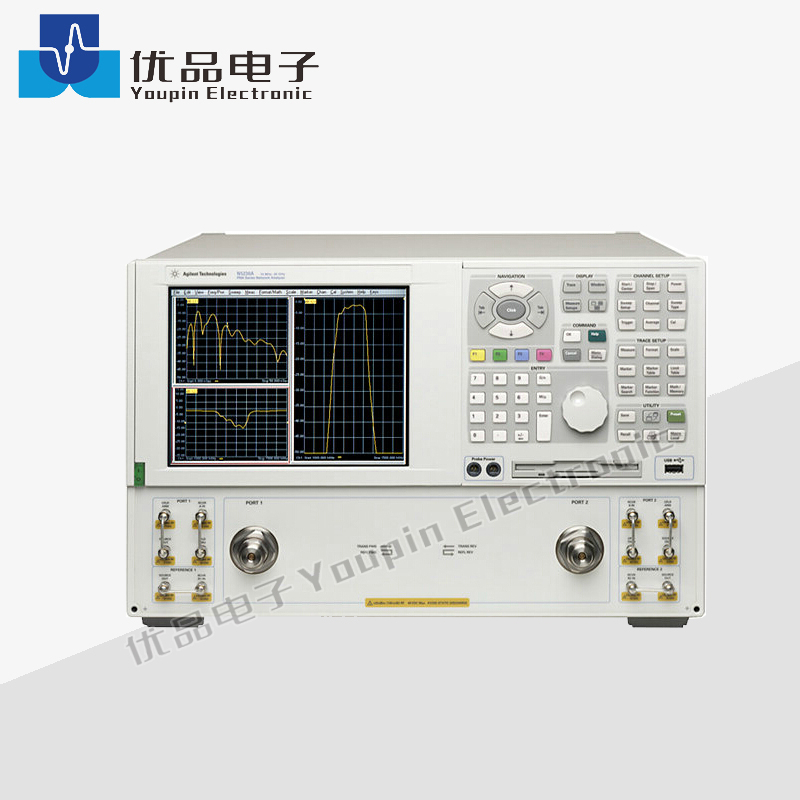

N5230A
| Menge: | |
|---|---|
2-ports, up to 6, 13.5, 20, 40, or 50 GHz
•108 dB of dynamic range and<0.006 dB trace noise
•<9 usec/point measurement speed, 32 channels, 16,001 points
•TRL/LRM calibration, on-wafer, in-fixture, and waveguide measurements
4-ports, up to 13.5, 20 GHz
•Integrated 4-port, balanced measurements
•103 dB dynamic range and < 0.004 dB trace noise
•4.5 usec/point measurement speed, 32 channels, 16,001 points
•Automatic port extension automatically corrects for in-fixture measurements
•Optional second internal source for fast measurements of amplifier intermodulation distortion and mixer/converter conversion loss
