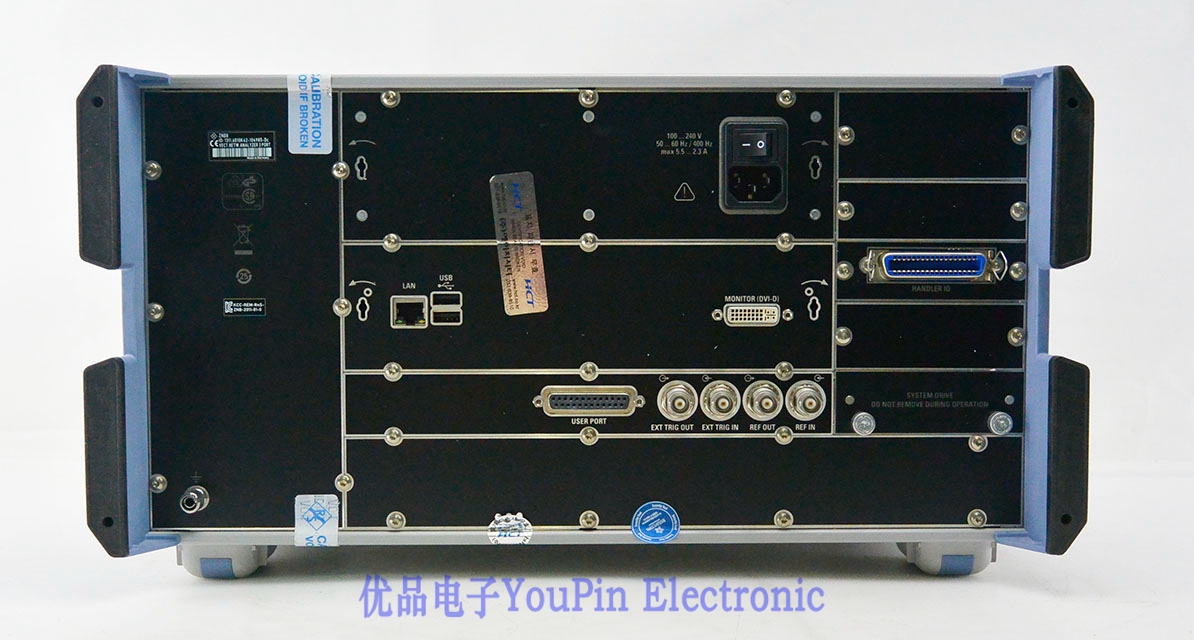

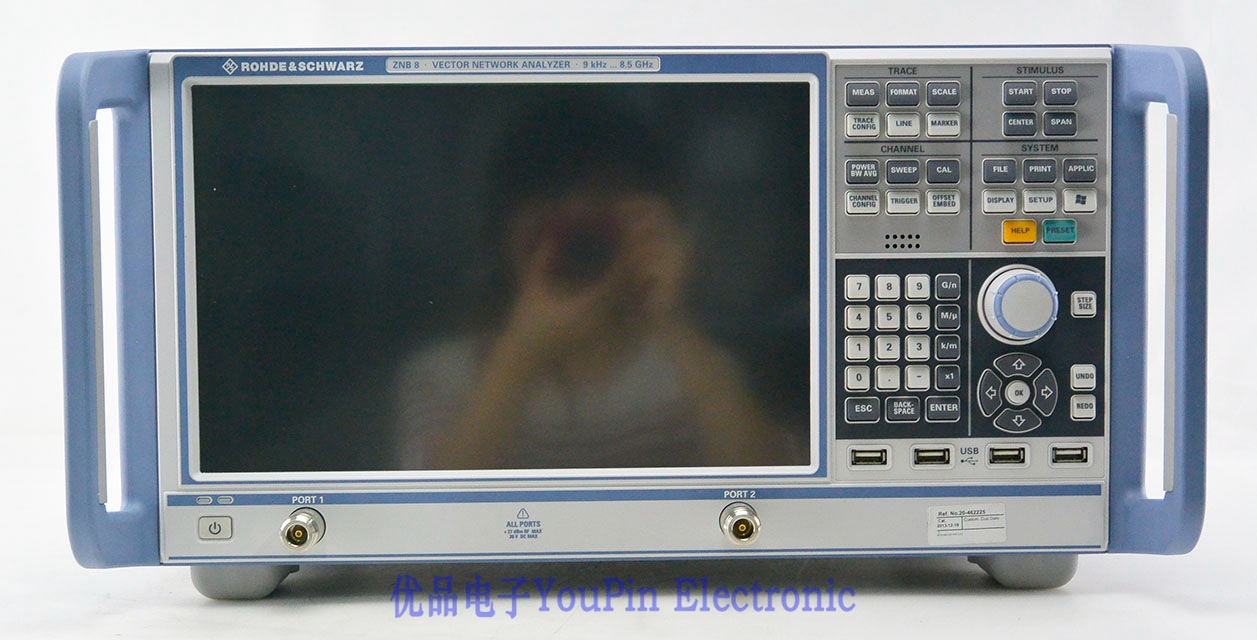

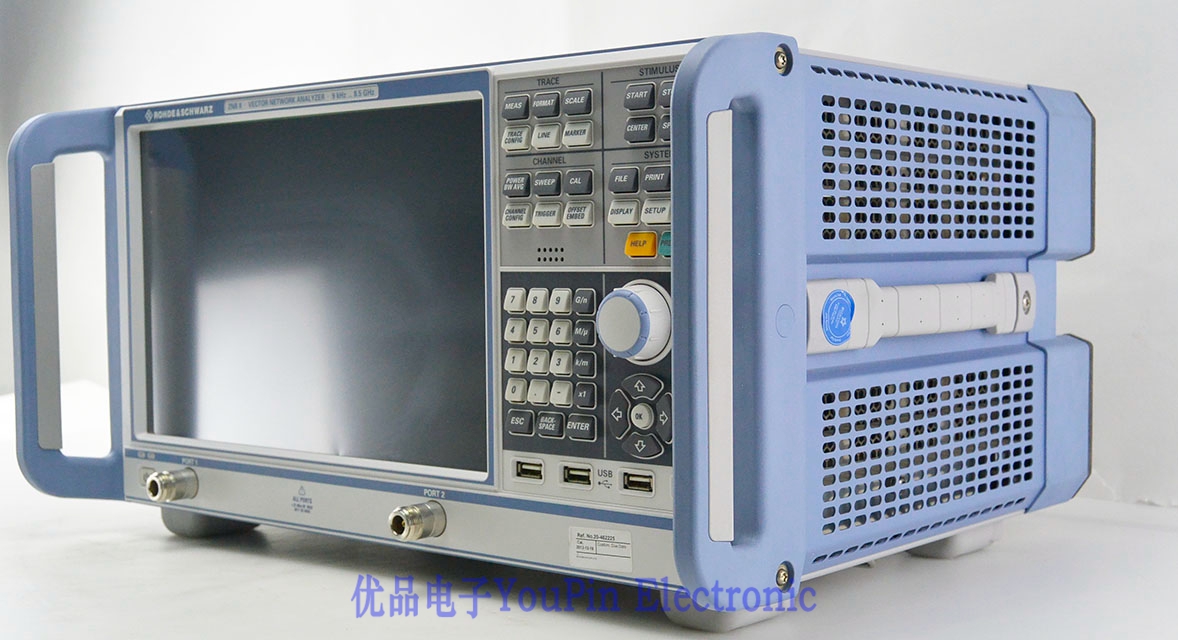

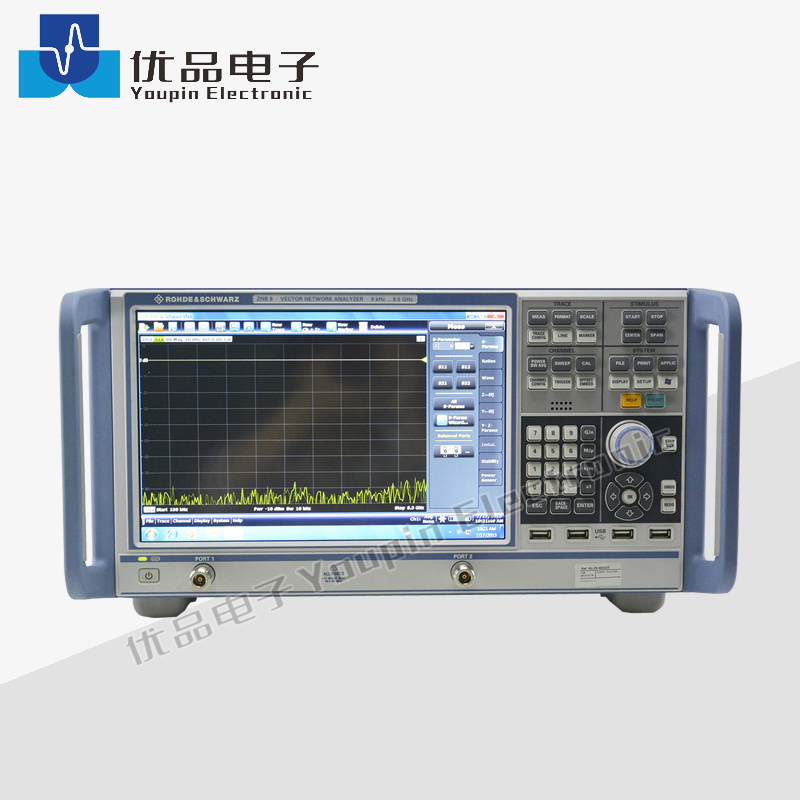

•Frequency range: 9 kHz to 8.5 GHz
•Frequency resolution: 1 Hz
•Number of test ports: 2
•Test port connector: N female
•Impedance: 50 Ω
•Number of measurement points per trace: 2 to 100001
•Measurement bandwidth
Without optional increased bandwidth: 1 Hz to 1 MHz
With optional increased bandwidth: 1 Hz to 10 MHz
The R&S ZNB vector network analyzers feature a wide dynamic range of up to 140 dB (at 10 Hz IF bandwidth), low trace noise of less than 0.004 dB RMS (at 10 kHz IF bandwidth) and high output power of up to +13 dBm, which can be adjusted electronically in a range of more than 95 dB.
With frequency ranges of 9 kHz to 8.5 GHz, the new network analyzers are primarily targeted at applications in the mobile radio and electronic goods industries. The R&S ZNB is the right choice when it comes to developing, producing and servicing RF components such as amplifiers, mixers, filters and cables.
The new analyzers combine high measurement accuracy with exceptional speed – better than 10 μs per point. They feature excellent temperature and long-term stability, which ensures reliable measurements over several days without having to recalibrate the units.
These short-depth, compact two-port and four-port analyzers leave plenty of space on the workbench for the measurement application. They feature low operating noise thanks to low power consumption and a sophisticated cooling concept. The low power consumption also reduces operating costs and protects the environment.
R&S ZNB4-B31 Receiver Step Attenuator, Port 1, for R&S ZNB4
R&S ZNB4-B32 Receiver Step Attenuator, Port 2, for R&S ZNB4
R&S ZNB4-B33 Receiver Step Attenuator, Port 3, for R&S ZNB4
R&S ZNB4-B34 Receiver Step Attenuator, Port 4, for R&S ZNB4
R&S ZNB8-B31 Receiver Step Attenuator, Port 1, for R&S ZNB8
R&S ZNB8-B32 Receiver Step Attenuator, Port 2, for R&S ZNB8
R&S ZNB8-B33 Receiver Step Attenuator, Port 3, for R&S ZNB8
R&S ZNB8-B34 Receiver Step Attenuator, Port 4, for R&S ZNB8
R&S ZNB4-B24 Extended Power Range for Four-Port R&S ZNB4
R&S ZNB4-B22 Extended Power Range for Two-Port R&S ZNB4
R&S ZNB8-B22 Extended Power Range for Two-Port R&S ZNB8
R&S ZNB8-B24 Extended Power Range for Four-Port R&S ZNB8
R&S ZNB20-B22 Extended Power Range for Two-Port R&S ZNB20
R&S ZNB20-B24 Extended Power Range for Four-Port R&S ZNB20
R&S ZNB40-B22 Extended Power Range for Two-Port R&S ZNB40
R&S ZNB-B1 Bias-Tees for Two-Port R&S ZNB
R&S ZNB-B1 Bias-Tees for Four-Port R&S ZNB
R&S ZNB-B2 Second Internal Generator for Four-Port R&S®ZNB4/R&S ZNB8
R&S ZNB-B4 Precision Frequency Reference
R&S ZNB-B10 GPIB Interface
R&S ZNB-B12 Device Control Required for direct control of R&S ZN-Z84 matrices
R&S ZN-B121 Direct Control Cable Required for direct control of R&S ZN-Z84 matrices
R&S ZN-B14 Handler I/O (Universal Interface)
R&S ZN-B15 GPIO Interface Cannot be combined with R&S ZNB-B1
R&S ZNB-B19 Additional Removable Harddisc 32 Bit
R&S ZNB-B19 Additional Removable Harddisc 64 Bit
R&S ZNB-B81 DC Inputs
R&S ZNB20-B2 Second Internal Generator for Four-Port R&S ZNB20
R&S ZNB4-B52 Extended dynamic range for ZNB4 Two-Port instrument
R&S ZNB4-B54 Extended dynamic range for ZNB4 Four-Port instrument
R&S ZNB8-B52 Extended dynamic range for ZNB8 Two-Port instrument
R&S ZNB8-B54 Extended dynamic range for ZNB8 Four-Port instrument
R&S ZNB-K2 Time Domain (TDR)
R&S ZNB-K4 Frequency Conversion Requires R&S ZVAB-B44 for control of external generators via the IEC/IEEE bus.
R&S ZNB-K14 Intermodulation Measurements
R&S ZNB-K17 10 MHz Receiver Bandwidth
R&S ZNB-K19 Freq. Resolution 1 mHz
