•Narrowband and broadband detection
•100 dB dynamic range
•Real-time sweep speeds (40 ms/sweep)
•Integrated S-parameter test set
•Synthesized source with 1-Hz resolution
•Standard LAN interface
•Standard Internal Keysight Instrument BASIC (IBASIC)
•Standard 2, 6, and 12-port switching test sets available

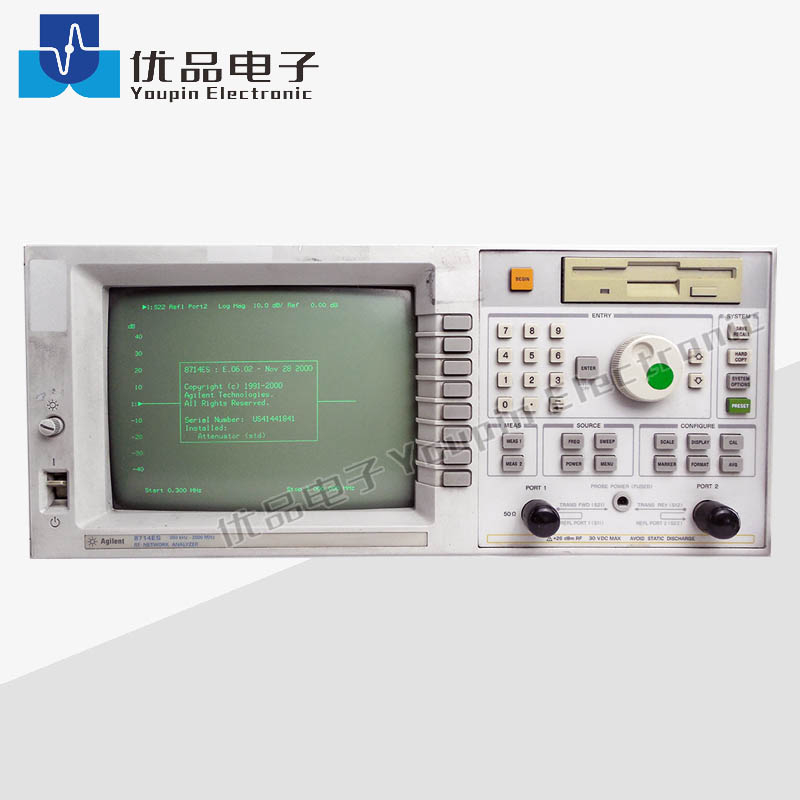

The Keysight 8714ES features an S-parameter test set with full two-port vector-error correction, providing complete and accurate measurements of device S-parameters. Two independent channels can measure and display two parameters such as S21 (transmission) and S11 (reflection) in a variety of formats including delay and SWR, on retangular, polar or Smith-chart displays. The Keysight 8714ES has a frequency range of 300 kHz to 3 GHz.
The ES models contain a 60-dB source attenuator as a standard feature, giving 70-dB of power-level control for testing active and passive devices. Both 50-ohm and 75-ohm versions are available.
11857B Test Port Cables, Type-N, 75 Ohms
11857F Test Port Cable Set, Type-F, 75 Ohms
85032E Economy Mechanical Calibration Kit, DC to 6 GHz, Type-N, 50 ohm
85036B Standard Mechanical Calibration Kit, DC to 3 GHz, Type-N, 75 ohm
85036E Economy Mechanical Calibration Kit, DC to 3 GHz, Type-N, 75 ohm
85039B Economy Mechanical Calibration Kit, DC to 3 GHz, Type-F, 75 ohm
