Keysight(Agilent)

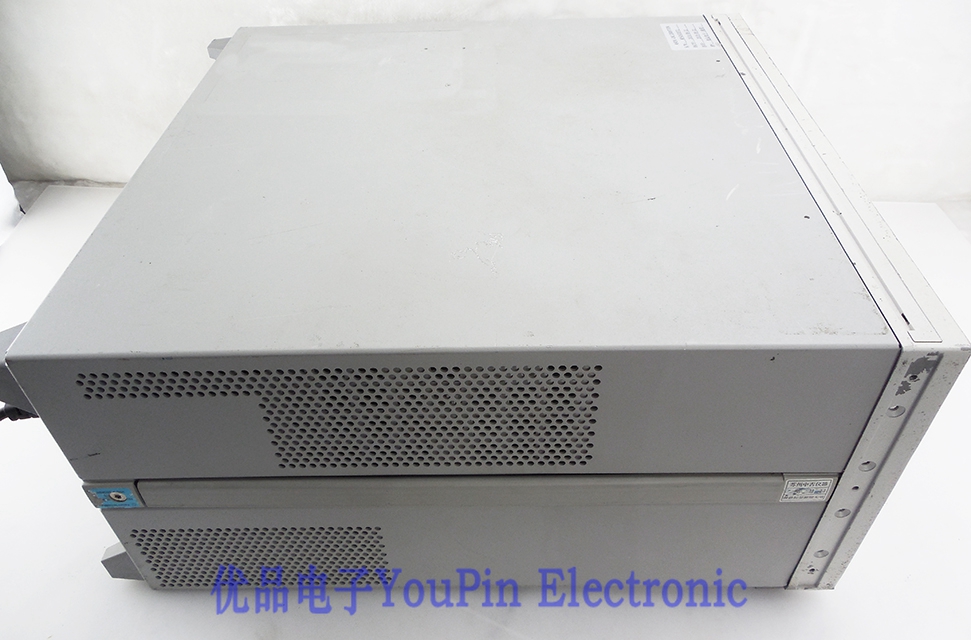

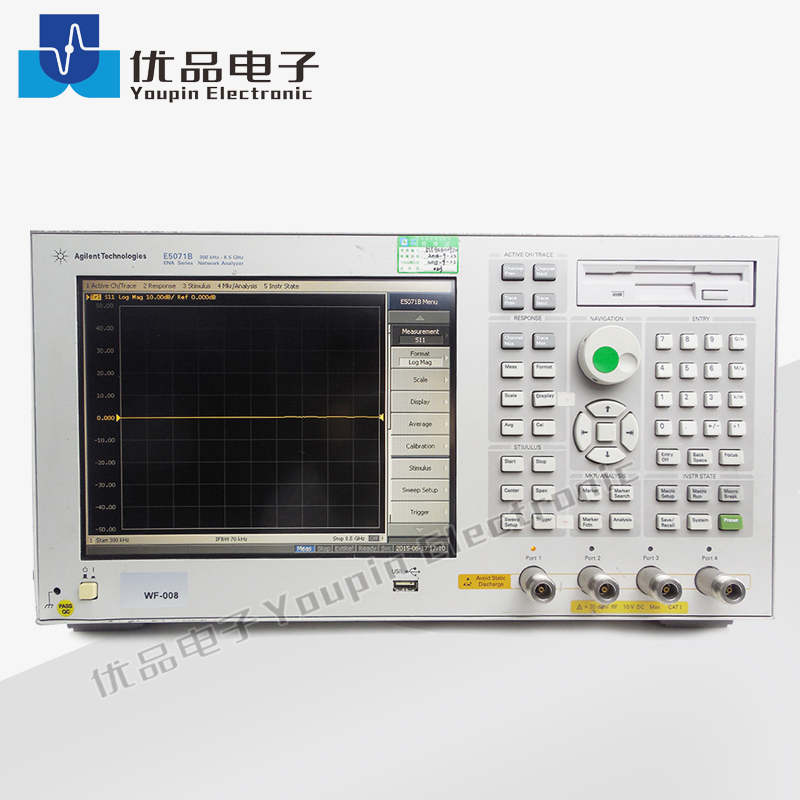

E5071B
| Menge: | |
|---|---|
•125 dB dynamic range at test port (typical)
•9.6 us/point sweep speed
•0.001 dB rms trace noise
•Integrated 2-, 3- and 4-ports with balanced measurements
•Fixture embedding/de-embedding and port characteristic impedance conversion
•Frequency-offset mode for frequency translated devices.
•Built-in Visual Basic for Applications (VBA)
•Measurement Wizard Assistant (MWA) software
The E5071B network analyzer offers fast and accurate measurements for RF components. The advanced architecture minimizes the number of sweeps to complete a multiport measurement and further improves test throughput.
•125 dB dynamic range at test port (typical)
•9.6 us/point sweep speed
•0.001 dB rms trace noise
•Integrated 2-, 3- and 4-ports with balanced measurements
•Fixture embedding/de-embedding and port characteristic impedance conversion
•Frequency-offset mode for frequency translated devices.
•Built-in Visual Basic for Applications (VBA)
•Measurement Wizard Assistant (MWA) software
The E5071B network analyzer offers fast and accurate measurements for RF components. The advanced architecture minimizes the number of sweeps to complete a multiport measurement and further improves test throughput.
