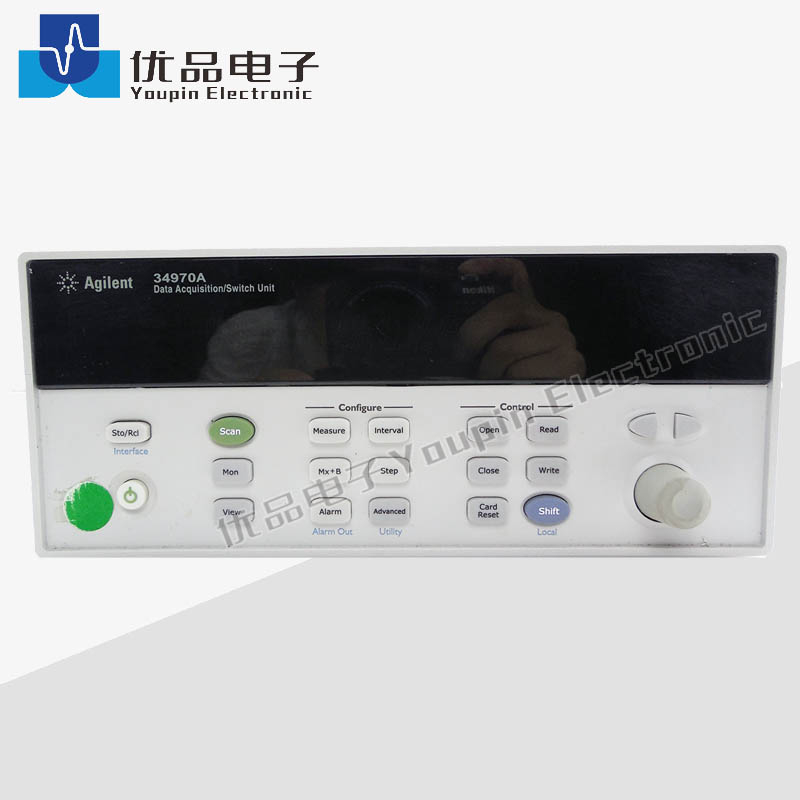

Keysight(Agilent) 34970A Data Acquisition

Features

•3-slot mainframe with built-in GPIB and RS232 interfaces
•6 1/2-digit (22-bit) internal DMM, scanning up to 250 channels per second
•8 switch and control plug-in modules to choose from
•Built-in signal conditioning measures thermocouples, RTDs and thermistors, ac/dc volts and current; resistance; frequency and period
•50k readings of non-volatile memory holds data when power is removed
•Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
•Free BenchLink data logger software to create tests without programming





The Keysight 34970A Data Acquisition / Data Logger Switch Unit consists of a three-slot mainframe with a built-in 6 1/2 digit digital multimeter. Each channel can be configured independently to measure one of 11 different functions without the added cost or hassles of signal-conditioning accessories. Choose from eight optional plug-in modules to create a compact data logger, full-featured data acquisition system or low-cost switching unit. On-module screw-terminal connections eliminate the need for terminal blocks and a unique relay maintenance feature counts every closure on every switch for easy, predictable relay maintenance. Our most popular module 34901A features a built-in thermocouple reference and 20 two-wire channels.




34970A-001      Mainframe without internal 6.5 digit DMM
34970A-100      100-volt ac line selection
34970A-120      120-volt ac line selection
34970A-220       220-volt ac line selection
34970A-240       240-volt ac line selection
34970A-A6J       ANSI Z540-1-1994 Calibration
34970A-PLG      Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
34131A               Transit Case
34161A               Accessory Pouch
34190A               Rackmount Kit
34191A               2U Dual Flange Kit
34194A               Dual Lock Link Kit
34307A               Thermocouple Kit
34308A               Thermistor Kit
34830A               BenchLink DataLogger Pro software for 34970A, 34972A - fixed, perpetual license
34901A               20 Channel Multiplexer (2/4-wire) Module for 34970A/34972A
34902A               16 Channel Multiplexer (2/4-wire) Module for 34970A/34972A
34903A               20 Channel Actuator/GP Switch Module for 34970A/34972A
34904A               4 x 8 Two-Wire Matrix Module for 34970A/34972A
34905A               2 GHz Dual 1:4 RF Mux, 50 Ohm Module for 34970A/34972A
34906A               2 GHz Dual 1:4 RF Mux, 75 Ohm Module for 34970A/34972A
34907A               Multifunction Module for 34970A/34972A
34908A               40 Channel Single-Ended Multiplexer Module for 34970A/34972A
82357B               USB/GPIB Interface High-Speed USB 2.0
BV0006A             BenchVue Data Acquisition Pro Software License
