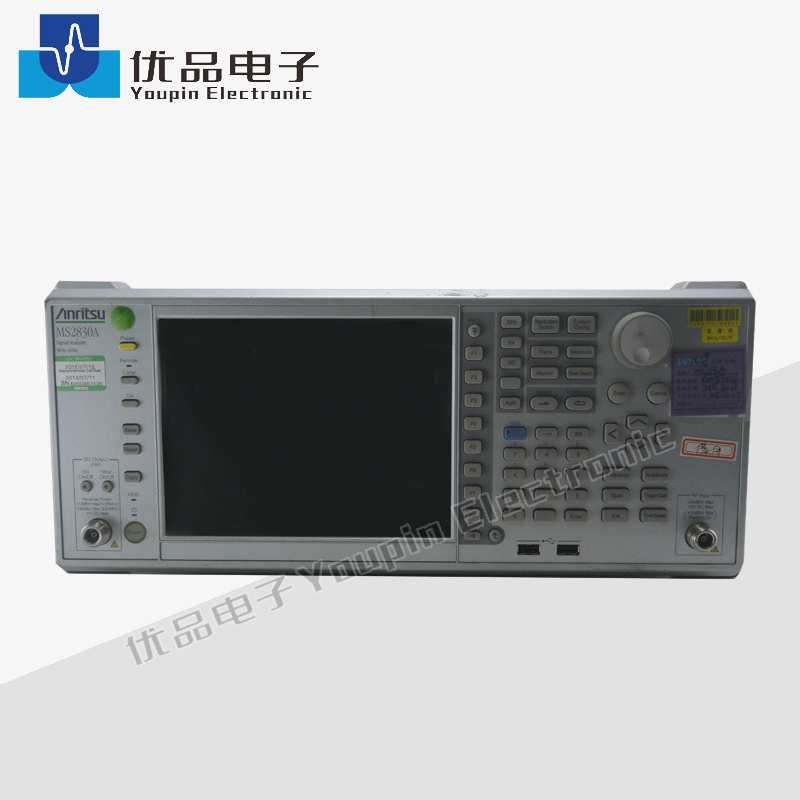

Anritsu
MS2830A
| Menge: | |
|---|---|
•Top-class spectrum analyzer measurement speed
•Provides ±0.3dB (typ.) total level accuracy
•Best-in-class dynamic range
•Spectrum analyzer supporting built-in vector signal generator, analog signal generator, audio analyzer and modulation analysis (options)
•Offers modulation analysis, such as 3GPP LTE/LTE-Advanced (FDD/TDD), Mobile WiMAX, WLAN IEEE802.11a/11b/11g/11j/11n/11p/11ac and FM/ΦM/AM. (with optional software)
•Noise Figure and BER measurement (options)
•Excellent eco-friendly product with low power consumption of 110 VA min.
The MS2830A is a spectrum analyzer/signal analyzer with top-class measurement speed at medium-class price. It has best-of-class dynamic range (average noise level [DANL]: –153 dBm, third-order intermodulation distortion [TOI]: +15 dBm) and excellent ±0.3 dB (typ.) total level accuracy using unique level calibration technology.
The MS2830A supports the optional Vector Signal Generator (VSG) or Analog Signal Generator and can be used as a reference signal source for tests of devices Tx characteristics or as a signal source for tests of Rx characteristics. Installing these signal generator options cut investment costs and footprint size. The IQproducer PC software generates waveform patterns for the VSG, supporting various communication methods, including LTE FDD, LTE TDD (TD-LTE), Mobile WiMAX, TDMA systems etc.
The analysis options up to 125 MHz can also be installed along with various measurement software tools supporting PC-free modulation analysis of various communication systems. The Opt.066 greatly improves phase noise for an offset of 1 to 100 kHz from the carrier wave for signals below 3.6 GHz.
mption of 110 VA min.
