Keysight(Agilent)

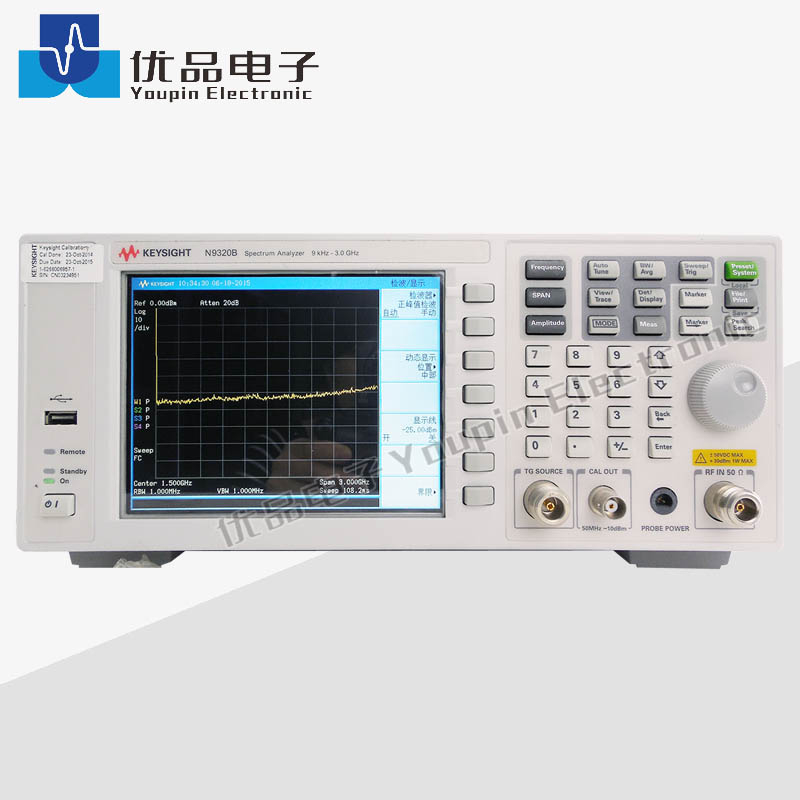

N9320B
| Menge: | |
|---|---|
Professional performance for spectrum analysis from 9 kHz to 3 GHz
•Minimum non-zero span sweep time: < 10 ms
•Resolving power RBW: 10 Hz to 1 MHz
•Sensitivity DANL: -130 dBm, -148 dBm with preamp on
•Overall amplitude accuracy: ±0.5 dB
Robust measurement features for characterizing your product easily
•Built-in power measurements: channel power, OBW, ACP, SEM and TOI
•Built-in power meter function with Keysight U2000 series power sensor support
•Optional tracking generator and preamplifier
•Optional AM/FM, ASK/FSK demodulation capability
Accessibility and ease-of-use at your finger tips
•Customized power-on or “preset” enabled setups
•Standard USB and LAN interface
•Multiple language graphic user interface
•Free remote control PC software
Additional information
•Keysight's PowerSuite one-button power measurements included as standard
Enhanced power measurement and easy automated test programming features
•The accuracy of frequency selective power measurements when characterizing your products is very important. With a newly featured digital IF, the N9320B provides measurement accuracy and speed you need to accomplish tasks easily
•Power meter functionality is a standard feature built-in with Keysight U2000 series power sensor support for highly accurate RF and MW power measurements
•Direct access to perform one-button power measurement functions offer channel power, ACP, OBW, SEM and TOI measurements
•For automated test programming, the N9320B provides industry standard SCPI language support and connectivity choices with USB and LAN. SCPI code compatible with Keysight ESA-L Series enables easy migration from ESA-L to the N9320B
N9320B-1CM Rack mount kit for N9320B spectrum analyzer
N9320B-1HB Handle and Bumper
N9320B-1TC Hard Transit Case
N9320B-AMA AM/FM demodulation metrics
N9320B-DMA ASK/FSK demodulation metrics
N9320B-EMF EMC Filter
N9320B-G01 GPIB Interface
N9320B-PA3 Preamplifier, 3 GHz
N9320B-PLG Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N9320B-TG3 Tracking Generator, 3 GHz
N9320B-TR1 Training kit, RF transceiver and courseware for education lab
N9320B-UK6 Commercial calibration certificate with test data
BV0005A BenchVue Spectrum Analyzer Pro Software License
