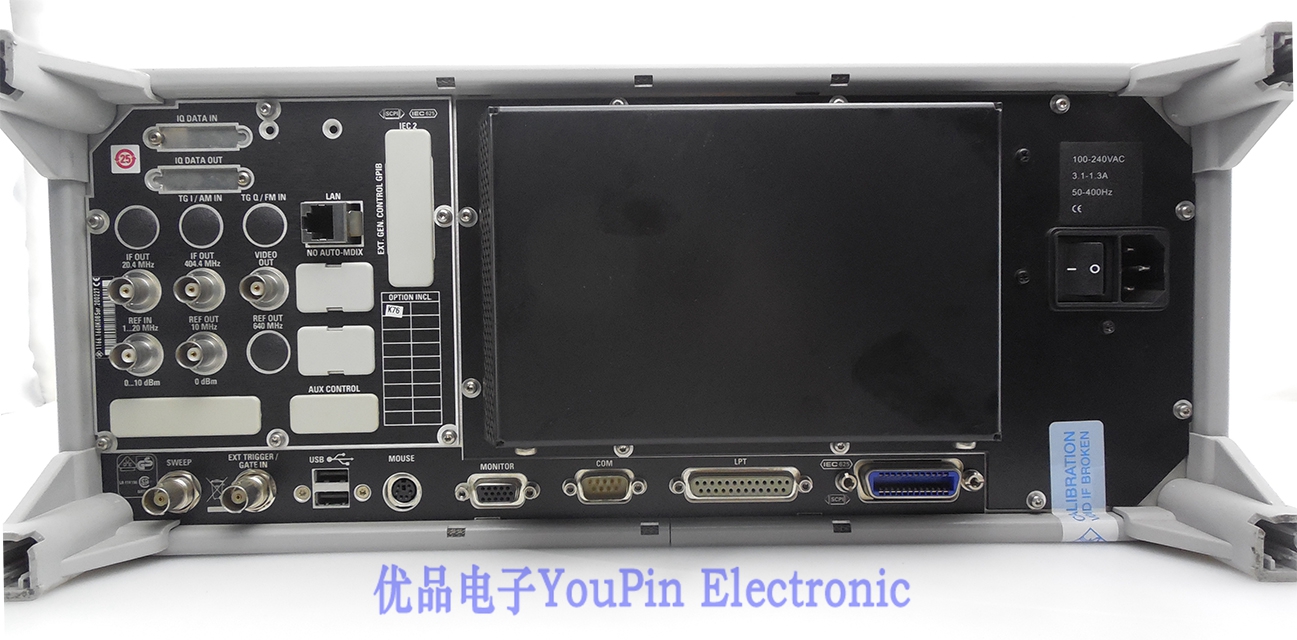

R&S FSU8 Spectrum Analyzer

  • R&S

  • FSU8


Shorter development cycles through versatile functions, wide dynamic range and performance
Full choice of detectors
Versatile resolution filters
Full range of analysis functions
High dynamic range

Innovative solutions through customized options
Measuring frequency deviation after settling
Power measurement
Scalar network analysis with wide dynamic range

Spectrum analysis up to 67 GHz/110 GHz
Direct frequency range up to 67 GHz
Easy expansion of the frequency range to 110 GHz with external mixers from Rohde & Schwarz
Support of external mixers up to 1 THz

High throughput in production
Short test cycles, high throughput
Fast time domain power measurement
List mode: combined measurement of various parameters with a single command
Up to 70 measurements/s in zero span via IEC/IEEE bus, including trace data transfer
Fast frequency counter: 0.1 Hz resolution for a measurement time of < 30 ms
859x/8566-compatible IEC/IEEE bus command set
High measurement speed

The R&S FSU is a high-performance spectrum analyzer with outstanding performance in phase noise, dynamic range and measurement accuracy that meets any challenge in RF analysis – in aerospace and defense or for general microwave applications up to 67 GHz.
To handle the wide variety of measurement tasks in product development, an instrument must offer ample functionality and excellent performance in all areas of interest. The R&S FSU fully meets these requirements.
Its wide dynamic range makes the R&S FSU an ideal tool for base station development and testing. That plus the excellent characteristics already incorporated in the standard model, e.g. < 0.3 dB total measurement uncertainty, gated sweep and IF power trigger.
