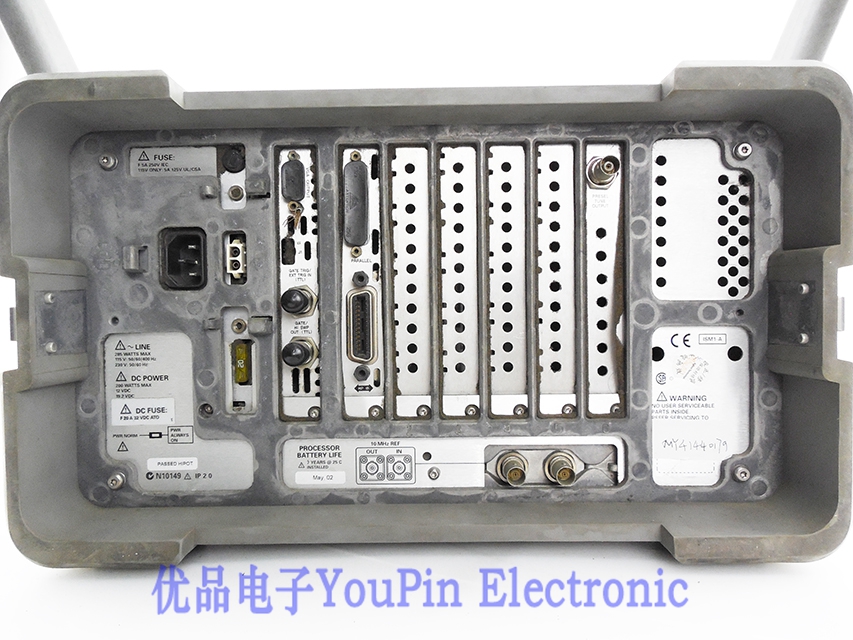

Keysight(Agilent) E4404B ESA-E Spectrum Analyzer

  • Keysight(Agilent)

  • E4404B


•0.4 dB overall amplitude accuracy
•+16 dBm TOI
•-167 dBm DANL, with internal preamp
•1 Hz narrow resolution bandwidth (optional)

Measurement applications
•Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
•PowerSuite one-button power measurements included as standard

•10 MHz analysis bandwidth
•Segmented sweep for up to 32 discontinuous spans in one sweep
•Rugged and portable for lab grade performance in the field
•5 minute warm-up to guaranteed measurement accuracy

Configuration selections
•Standard express analyzer E4404B-STD for faster delivery time, includes options AYX, BAA.
•Standard express analyzer with tracking generator E4404B-STG for faster delivery time, includes options 1DN, AYX, BAA.
•Communications test express analyzer E4404B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
•Custom configuration for maximum flexibility with standard delivery time.

E4404B-042      Gray spectrum analyzer backpack
E4404B-044      Yellow spectrum analyzer backpack
E4404B-060      Reduced emissions
E4404B-106      Bluetooth FM demodulator
E4404B-120      Enhanced Wide Offset Phase Noise and ACPR Dynamic Range
E4404B-1AX      RS-232 and Centronics interface
E4404B-1CP     Rackmount and handle kit
E4404B-1D5     High stability frequency reference
E4404B-1D6     Time-gated spectrum analysis, fixed perpetual license
E4404B-1D7     50 -75 ohm minimum loss pad(s)
E4404B-1DN    Tracking generator
E4404B-1DR    Narrow resolution bandwidths
E4404B-1DS     Preamp
E4404B-219      Noise figure measurement personality and hardware, fixed perpetual license
E4404B-225      Cable fault location measurement personality, fixed perpetual license
E4404B-226      Phase noise measurement personality, fixed perpetual license
E4404B-227      Cable TV measurement personality, fixed perpetual license
E4404B-228      Bluetooth measurement personality, fixed perpetual license
E4404B-229      Modulation analysis measurement personality, fixed perpetual license
E4404B-230      BenchLink web remote control software
E4404B-231      ESA to 89600 series software link update
E4404B-252      EDGE upgrade to GSM measurement personality, fixed perpetual license
E4404B-266      8566/8568 programming code compatibility suite
E4404B-290      859x programming code compatibilty
E4404B-304      Bluetooth premium opt. Bundle
E4404B-A5D     12 Vdc power cable
E4404B-A6J      ANSI Z540-1-1994 Calibration
E4404B-AKT      Russia - Russian localization (includes English manual set)
E4404B-AMG     Calibration + Uncertainties + Guardbanding (Accredited)
E4404B-AXT      Add transit case
E4404B-AYQ     FM demodulation and quasi peak detector
E4404B-AYT      Gray soft carrying/operating case
E4404B-AYU     Yellow soft carrying/operating case
E4404B-AYX      Fast time domain sweep
E4404B-B75      Performance opts. Bundle
E4404B-B7B     TV trigger and picture on screen
E4404B-B7D     Digital signal processing and fast ADC
E4404B-B7E      RF communications hardware
E4404B-B7K      Cable fault measurement kit
E4404B-BAA      FM demodulation
E4404B-BAC     CDMAOne measurement personality, fixed perpetual license
E4404B-BAH     GSM/GPRS measurement personality, fixed perpetual license
E4404B-COM    Communication test analyzer (1D5, 1DR, B7D, B7E, BAA)
E4404B-H70     70MHz IF out
E4404B-J36      FM deviation personality - enhanced, fixed perpetual license
E4404B-STD     Standard analyzer (AYX, BAA)
E4404B-STG     Standard analyzer with tracking generator (1DN, AYX, BAA)
E4404B-UK6     Commercial calibration certificate with test data
E4404B-UK9     Front panel cover
E4404B-UKB    100 Hz low frequency extension
BV0005A            BenchVue Spectrum Analyzer Pro Software License
E1779B              Battery Pack for ESA Spectrum Analyzers
